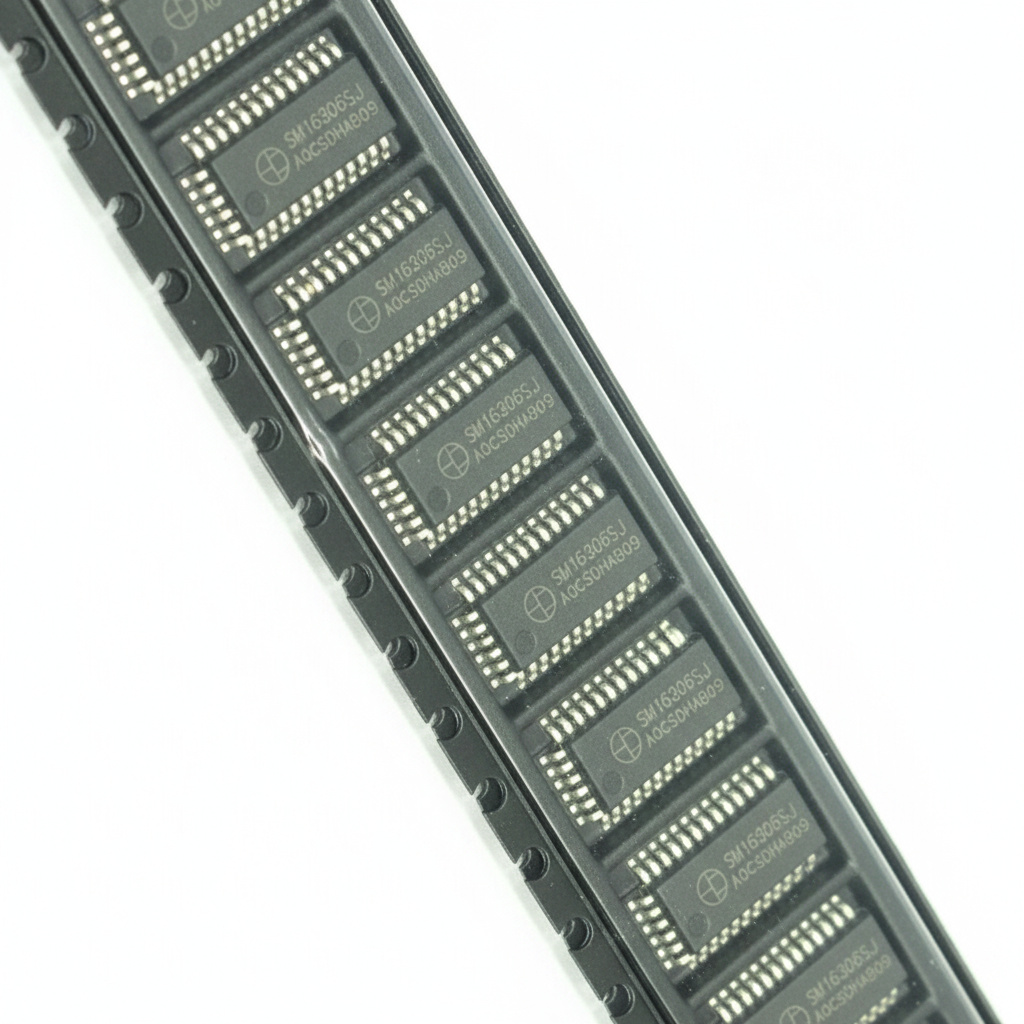

SM16306S LED Driver IC QSOP-24 Display Driver Shenzhen Sunmoon MicroSM16306SJ

Product Overview: A 16-channel constant current LED driver integrated circuit designed with built-in CMOS shift register and latch functions. It is optimized for LED display applications, capable of converting serial input data into parallel output data, and includes a shadow-elimination function to reduce ghosting effects.

Core Specifications:

• Manufacturer: Shenzhen Sunmoon Microelectronics Co., Ltd.

• Package Type: QSOP24

• Function: 16-Channel Constant Current LED Driver

• Operating Voltage: 3.3 V to 5.5 V

• Output Channels: 16

• Constant Current Range: 3 mA to 32 mA (at VDD = 4.2 V) or 3 mA to 22 mA (at VDD = 3.3 V)

• Clock Frequency: Up to 25 MHz

• Features: Shadow-elimination function, adjustable output current via external Rext resistance, and fast output current response (OE minimum 35ns).
