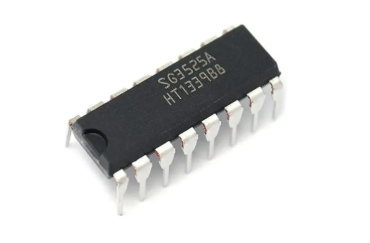

SG3525A SMD MOSFET SOP16 3525 ST SG3525A

Product Overview

A surface-mount pulse width modulator (PWM) control integrated circuit (IC) designed to drive power MOSFETs in switching power supplies. It features dual alternating outputs, making it ideal for push-pull, half-bridge, and full-bridge inverter configurations.

Note: Despite generic online listing titles that include the term "MOSFET," this component is functionally a PWM Controller IC used to control power transistors, rather than a standalone transistor.

Core Specifications

• Manufacturer: STMicroelectronics (ST)

• Package Type: SOP-16 (SOIC-16)

• Function: SMD PWM Controller IC

• Supply Voltage Range ($V_{CC}$): 8V to 35V

• Output Current: 500mA peak (Dual alternating source/sink outputs)

• Oscillator Frequency Range: 100 Hz to 400 kHz

• Key Features: Built-in soft-start, under-voltage lockout (UVLO), adjustable deadtime control, onboard error amplifier, and a dedicated shutdown terminal.

• Part Number: SG3525A
