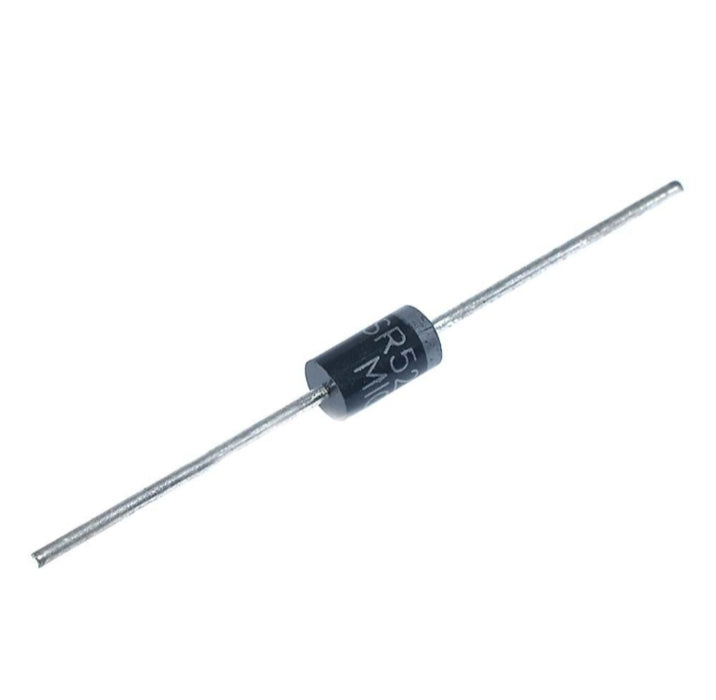

SR5200 Schottky diode 5A 200V SR-5200

Product Overview

The component featured in the datasheet is the SR520 thru SR5200 series Schottky Barrier Rectifier. It operates on the principle of a Schottky barrier junction, providing fast switching capability, low switching losses, and a low forward voltage drop across a voltage range of 20V to 200V at a continuous current of 5.0A. The axial DO-201AD molded plastic package features a color band indicating the cathode terminal, long uninsulated metal leads for through-hole mounting, and an epoxy housing rated under UL flammability classification 94V-0. It is highly popular in DIY electronics, switching power supplies, and automotive modules (with AEC-Q101 qualified variants) for high-frequency inverters, freewheeling diode protection, and reverse polarity prevention circuits.

Manufacturer

• Manufacturer: Rectron Semiconductor (Rectron Inc.)
