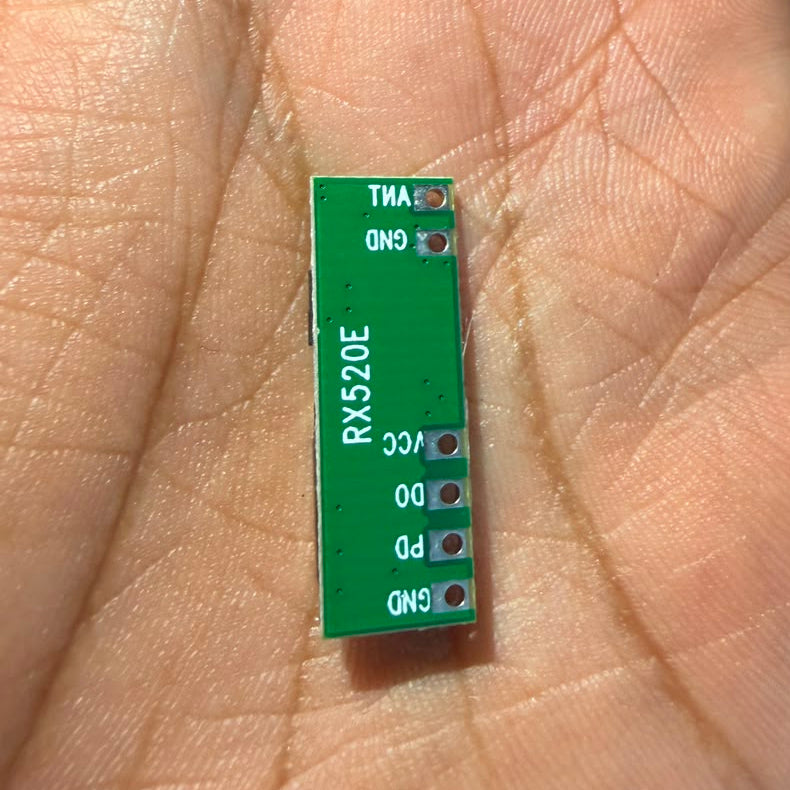

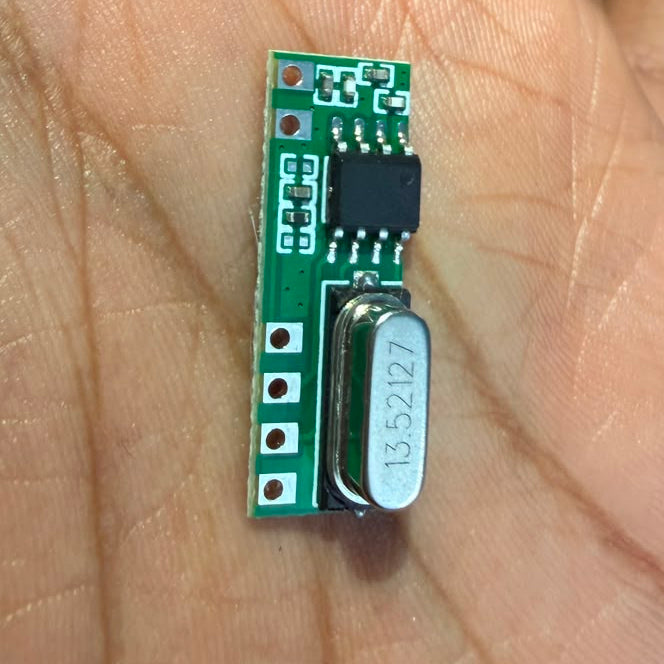

RX520E SMD RF Module Receive-110dBm VIBRATION

Product Features:

• ASK wireless receiver module
• Supports 315MHz and 433.92MHz operation
• High receiver sensitivity: -110dBm @ 3kbps
• Low operating current: 2.8–3.1mA
• Wide supply voltage: 2.5V to 5.5V
• Built-in PD sleep control with 1µA standby current
• Fast wake-up time: 3ms
• Suitable for remote control, wireless sensors, and security systems

Manufacturer: VIBRATION
Manufacturer Part Number: RX520E
Package: SMD,23.7x8.2mm
Marking Code: RX520E
Mounting Type: Through Hole
