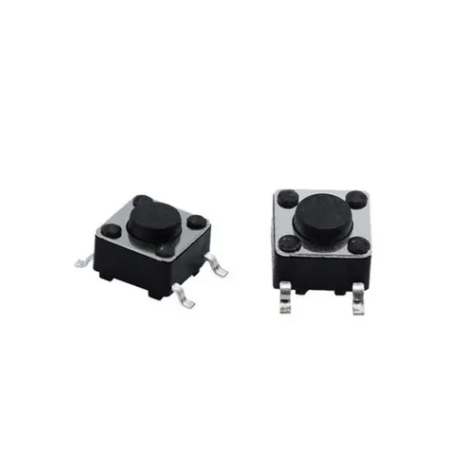

Round Button Horizontal SPST Tactile Switch GT-TC106F-H043-L1 6.2x4.3mm

Product Specifications

• Product Name: Round Button Horizontal SPST Tactile Switch GT-TC106F-H043-L1

• Part Number: GT-TC106F-H043-L1

• Brand: G-Switch

• Type: SPST Tactile Switch

• Rating: 50mA @ 12V DC

• Switch Height: 4.3mm

• Operating Force: 160gf

• Operating Temperature: -30°C to +85°C

• Contact Resistance: ≤100mΩ

• Insulation Resistance: ≥100MΩ

• Dielectric Strength: 250V AC / 1 Minute

• Travel: 0.25±0.1mm

• Life: 100,000 Cycles
