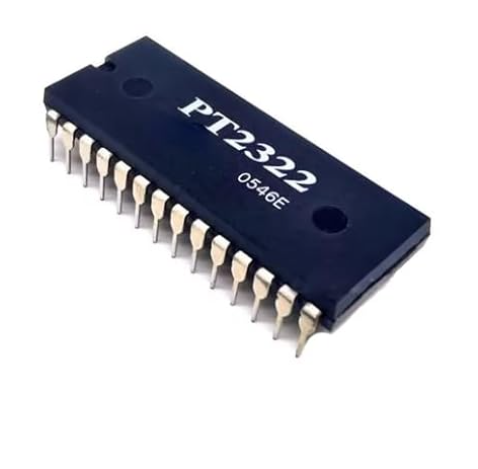

PT2322 IC 6-Channel Audio Processor IC PT 2322 ic dip

Product Overview

A highly integrated 6-channel audio processor integrated circuit utilizing CMOS technology, specifically designed for high-performance audio applications. It consolidates comprehensive multichannel sound adjustments onto a single chip to achieve optimal reliability with minimal external component overhead.

Core Specifications

• Manufacturer: Princeton Technology Corp. (PTC)

• Package Type: 28 Pins, SO Package (330 mil body width) or DIP Package (600 mil)

• Function: 6-Channel Audio Processor IC

• Input Channels: 6-Channel Individual Input

• Control Interface: I2C Bus Control Interface

Key Features

• Multichannel Volume Adjustments: Features a 6-channel master volume control spanning 0 to -79 dB (1 dB/step) along with independent 6-channel output TRIM volume controls spanning 0 to -15 dB (1 dB/step).

• Acoustic Tailoring: Built-in 3-band tone control allowing customized adjustments for Treble, Middle, and Bass (+/-14 dB in 2 dB/steps) alongside an integrated 3D effect function.

• System Operations: Supports a quick mute function and a tone defeat function to bypass equalization circuits when a flat response is preferred.

• High Audio Fidelity: Delivers high channel separation, low noise, and low harmonic distortion to safeguard audio purity across high-end sound installations.

• Low Power Requirement: Designed for highly efficient installations with very low power consumption operating at a typical DC voltage of 9V.
