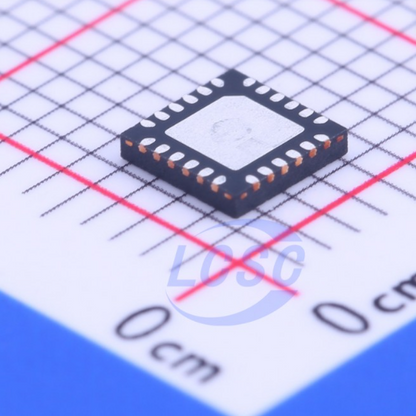

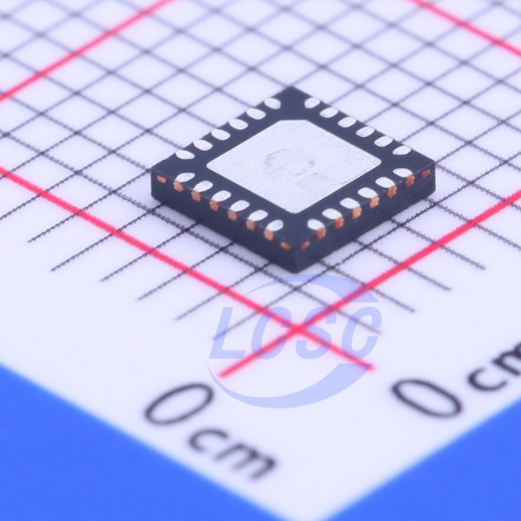

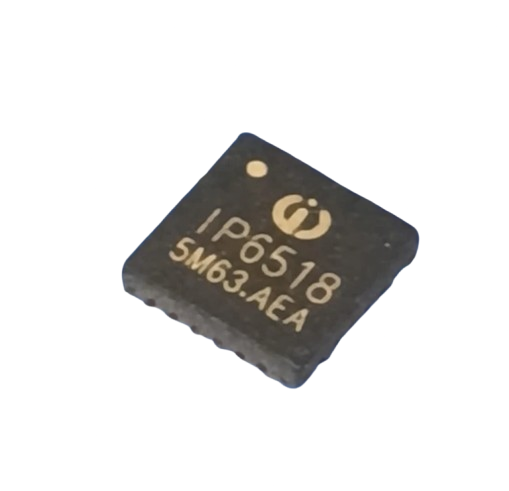

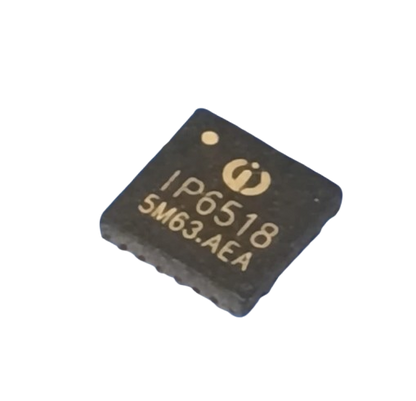

IP6518 QFN-24-EP(4x4) SMD IC Power Management INJOINIC

Product Features:

Synchronous switching buck converter with integrated power MOS
Input operating voltage range: 10.5V to 32V
Output voltage range: 3V to 20V, automatically adjusted according to fast charging protocol
Maximum output power: 45W
Supports CV/CC output mode
Output line compensation: 125mV/A
Conversion efficiency up to 97%
Soft-start function
Adjustable switching frequency: 150kHz / 220kHz / 350kHz
Supports Type-C output and USB PD protocol
Supports PD output: 5V / 7V / 9V / 12V / 15V / 20V
Supports BC1.2, Apple, Samsung charging protocols
Supports QC2.0 / QC3.0, PE+1.1 / PE+2.0, FCP / SCP, AFC, SFCP
Input over-voltage, under-voltage, output short-circuit, over-current, and over-temperature protection
ESD protection: 4kV
DC withstand voltage: 48V

Manufacturer: INJOINIC
Manufacturer Part Number: IP6518
Package: QFN-24-EP(4x4)
Mounting Type: Surface Mount (SMD)
