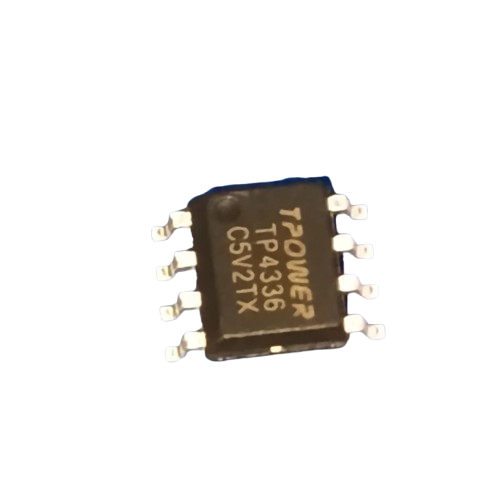

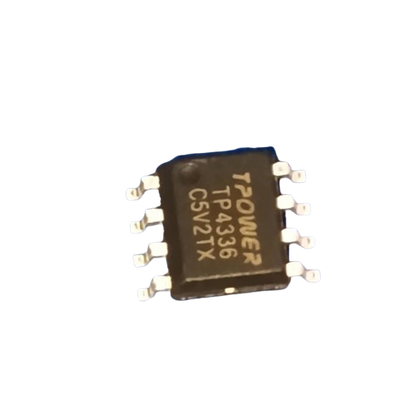

TP4336 ESOP-8L SMD IC Power Management 5V EL TPOWER

Product Features:

Integrated linear charging management and synchronous boost converter
Integrated power path management with charge-and-discharge simultaneously support
Discharge efficiency up to 93% at 1A output
Maximum synchronous boost output current: 1A
Fixed charging current: 1A
Ultra-low standby current: 14uA
Light-load auto shutdown current: 50mA
Automatic load detection for power on/off
Single-click power on, double-click power off
Supports flashlight output
Adaptive charging current technology
Intelligent temperature control and over-temperature protection
Integrated overcharge, over-discharge, output over-voltage, over-current, and short-circuit protection

Manufacturer: TPOWER Semiconductor
Manufacturer Part Number: TP4336

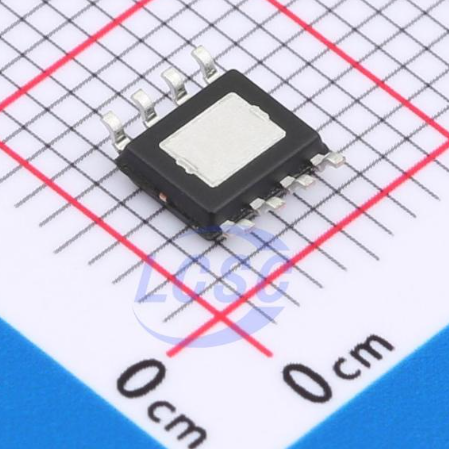

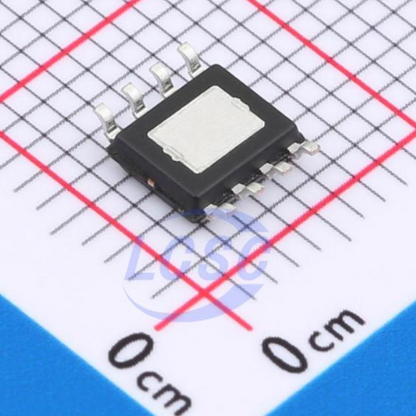

Package: ESOP-8L
Marking Code: TP4336
Mounting Type: Surface Mount (SMD)
