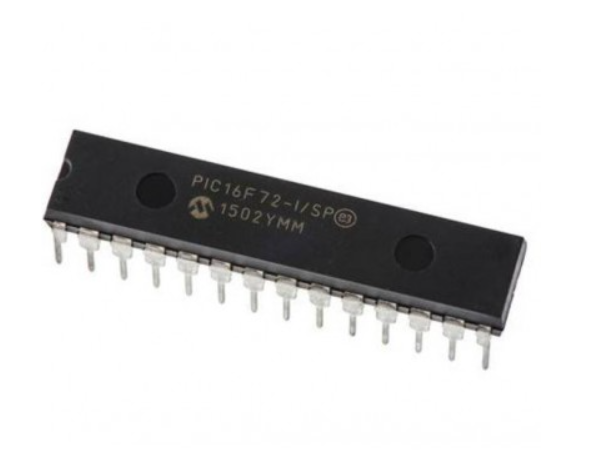

PIC16F72 Microcontroller MC DIP-28 PIC16F72

Product Overview

The PIC16F72 is a powerful, FLASH-based 8-bit CMOS microcontroller featuring Microchip's high-performance RISC architecture packed into a 28-pin package. Operating with a rapid 200-nanosecond instruction execution speed, it utilizes an easy-to-program design built around only 35 single-word instructions.

The device integrates key analog and timing peripherals, including a 5-channel, 8-bit Analog-to-Digital Converter (ADC) and a Capture/Compare/PWM (CCP) module. Its Synchronous Serial Port (SSP) supports seamless communication via either 3-wire SPI or 2-wire I²C protocols. These versatile features make it highly suited for advanced analog-to-digital control in automotive, industrial, consumer appliance, and electronics applications.

Core Specifications

• Manufacturer: Microchip Technology

• Function: 8-Bit CMOS FLASH Microcontroller with ADC and Serial Peripherals
