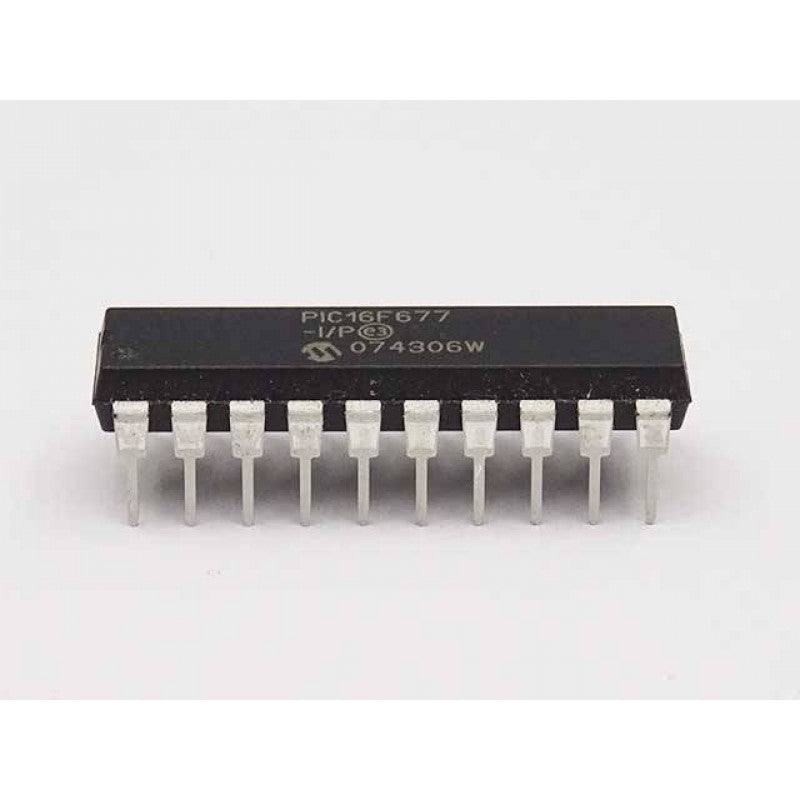

PIC16F677 IC DIP20 Micro chip PIC16F677-I/P

Product Overview

A versatile, 8-bit flash-based CMOS microcontroller designed for efficient embedded control, featuring integrated high-performance analog and digital peripherals. It incorporates a 10-bit Analog-to-Digital Converter (ADC), dual comparators with a programmable SR latch, an Enhanced Capture/Compare/PWM (ECCP) module with full/half-bridge drive capabilities, an independent non-volatile data EEPROM with secure safety unlock sequences, and a full-featured EUSART module optimized for robust asynchronous serial communication.

Core Specifications

• Manufacturer: Microchip Technology

• Package Type: 20-pin PDIP, SOIC, SSOP, and QFN

• Function: 8-Bit Flash Microcontroller with Integrated Analog Peripherals and EUSART Serial Engine

• Input Voltage: 2.0V to 5.5V operating voltage range

• Control Interface: Hardware configuration managed via dedicated Special Function
