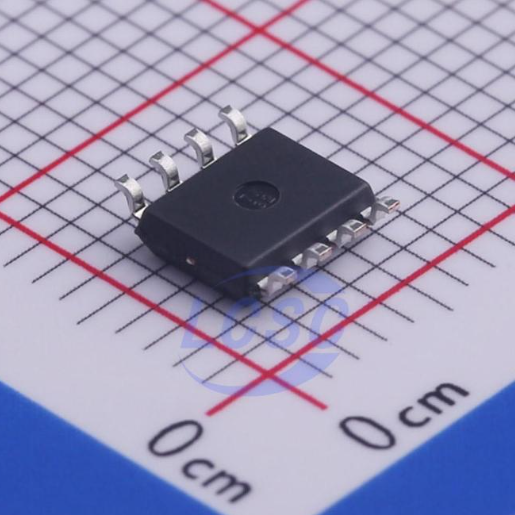

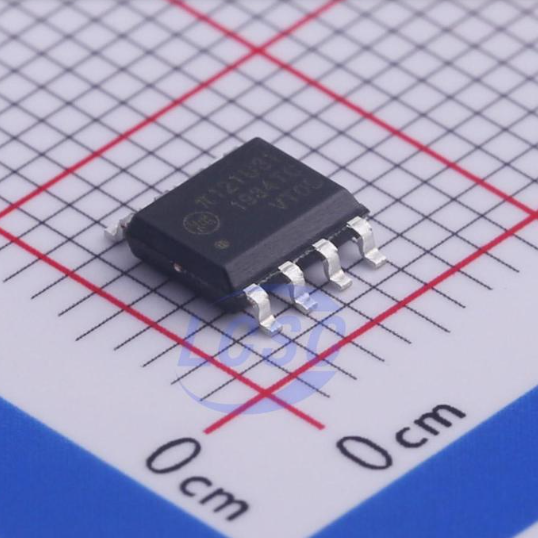

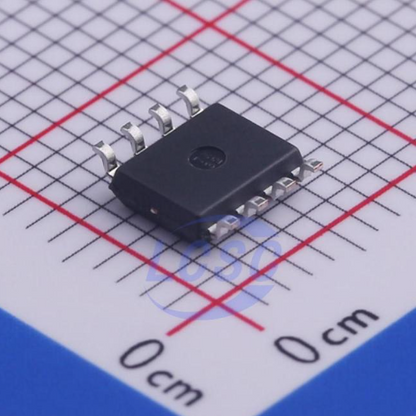

Pi121U31 Digital Isolators 121U31 SOIC-8 2Pai Semi 150kV/us

Product Features:

• Dual-channel digital isolator
• Isolation voltage: 3000Vrms or 6000Vrms
• Data rate: 150kbps
• Supply voltage range: 3.0V to 5.5V
• High common-mode transient immunity: 150kV/µs typ.
• Enhanced ESD protection: ±8kV HBM
• Ultra-low power consumption: 0.55mA per channel typ.
• Supports 3.3V and 5V logic level translation
• Operating temperature range: -40°C to +125°C

Manufacturer: 2Pai Semiconductor Co., Limited
Manufacturer Part Number:Pi121U31

Package: SOIC-8
Marking Code: π120U / π121U / π122U
Mounting Type: Surface Mount (SMD)
