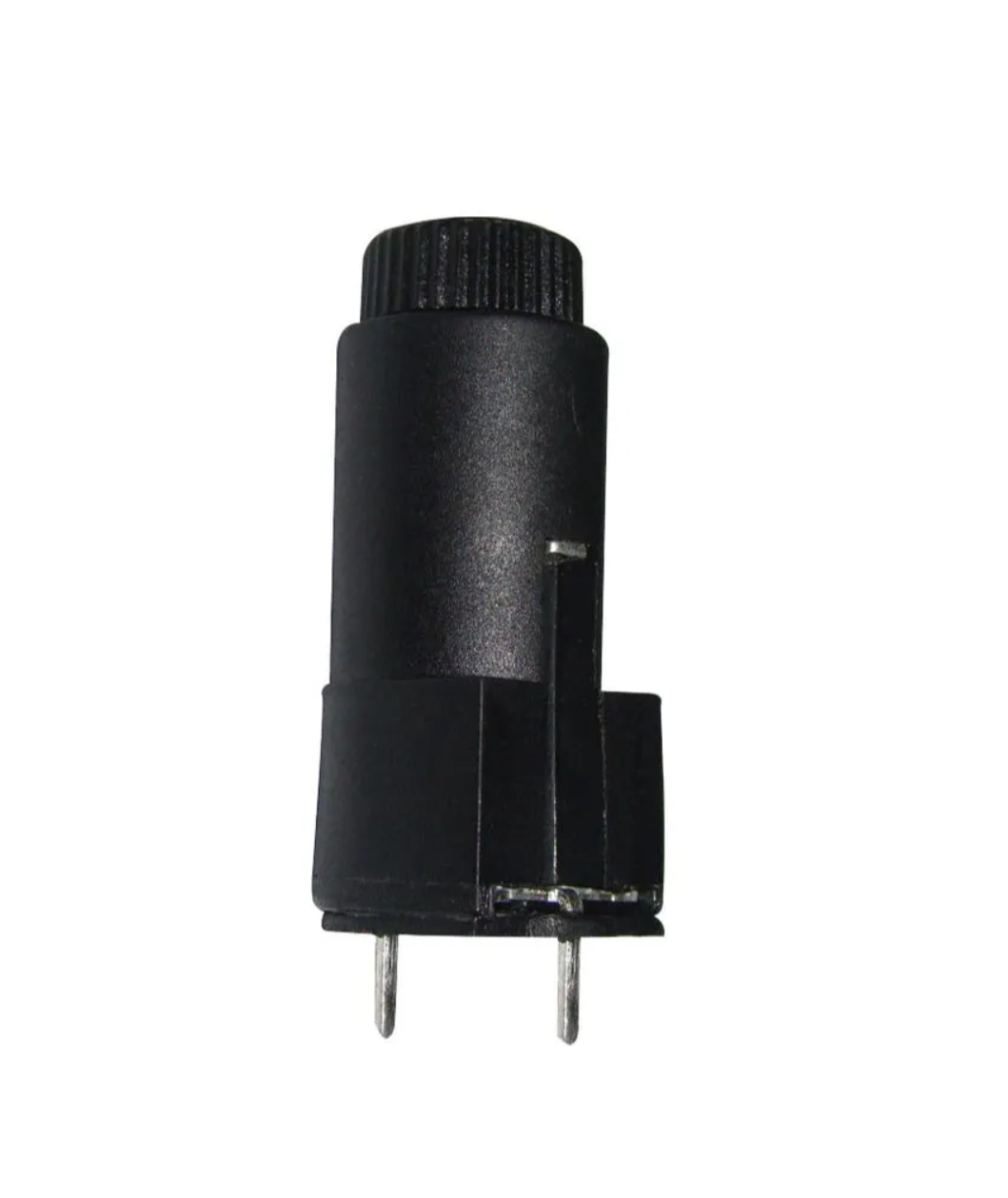

PBF-2M PCB Fuse Holder Straight ELCOM PBF2M for 5X20mm fuse

Type: PCB Fuse Holder
Rating: 6.3A / 250V AC
Fuse Size: 5 × 20 mm
Mounting: PCB-Type
Terminals: Solder-Type
Temperature: -20°C to +85°C
Soldering Temperature: 270°C / 5 sec max.
Material: Polyamide G.F.
Insulation Resistance: 1000 MΩ min.
H.V. Breakdown: 2 KV AC / 1 min
Contact Resistance: 10 mΩ max.
Cap Design: Screw-In With Coin Slot
Weight: 4.7 g
Approvals: CDOT
Compliance: CE
Manufacturer: Elcom
Part Number: PBF-2M
