P6KE200 TVS Diode P6-KE-200

Primary Purpose

This component is designed specifically to protect sensitive electronic equipment from destructive voltage transients induced by lightning strikes and other transient high-voltage events.

Functional Features

• Peak Pulse Power: Offers a 600W peak pulse capability at a  waveform with a repetition rate (duty cycle) of 0.01%.

• Response Time: Features an ultra-fast response time, typically measuring less than 1.0 picosecond (ps) from 0 Volts to the minimum breakdown voltage ($V_{BR}$ min).

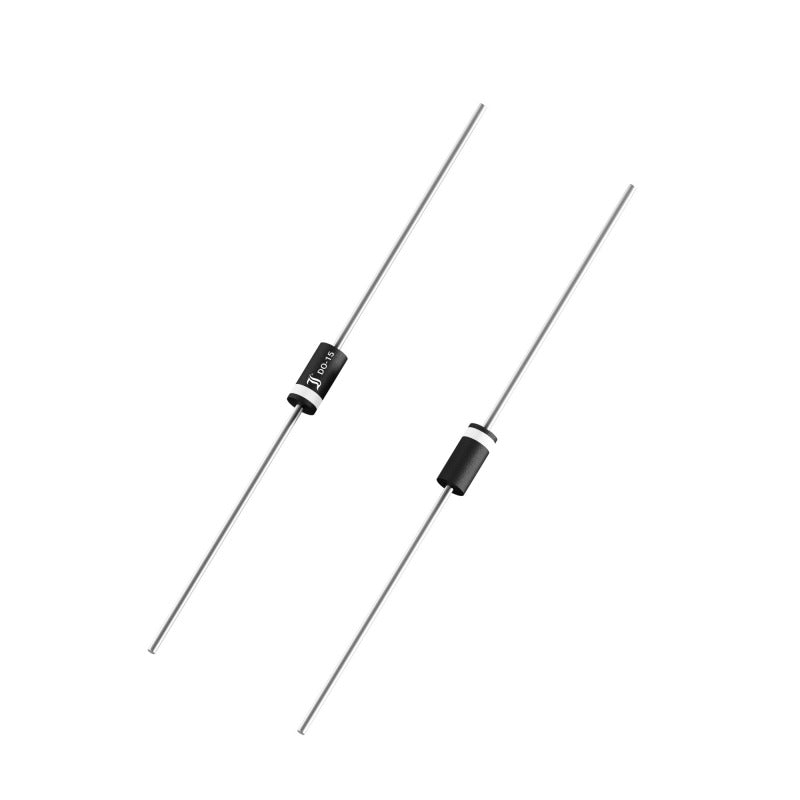

• Physical Construction: Built with a glass-passivated chip junction housed inside a JEDEC DO-204AC (DO-15) molded plastic body. The housing utilizes a UL Recognized epoxy that meets the V-0 flammability classification.

• Environmental Standards: The device is halogen-free, RoHS compliant, and features matte tin lead-free plated axial leads.

• Standard Failure Mode: Its typical failure mode manifests as a short-circuit when subjected to conditions that exceed specified operational voltage or current limits.
