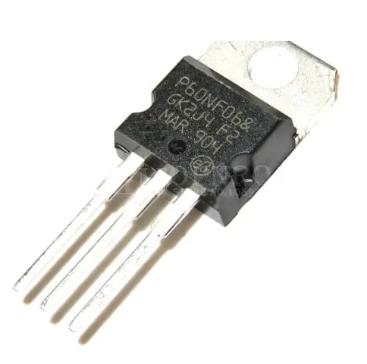

P60NF60FP MOSFET P60NF60 60NF60 ST P60NF60FP

Product Overview:

A through-hole N-Channel power MOSFET engineered for high-efficiency, high-speed switching and low on-resistance. Utilizing STMicroelectronics' unique STripFET™ technology, this device is designed to minimize input capacitance and gate charge, offering exceptional $dv/dt$ capability and robust avalanche ruggedness. It is widely used as a primary switch in advanced high-efficiency isolated DC-DC converters, uninterruptible power supplies (UPS), industrial motor control systems, and automotive electronics.

Core Specifications:

Manufacturer: STMicroelectronics

Package Type: TO-220FP (Fully insulated FullPAK) / TO-220

Function: N-Channel Power MOSFET

Maximum Drain-Source Voltage: 60V

Continuous Drain Current: 60A (Silicon limited; package limited to 37A for the insulated TO-220FP variant at 25°C)

Specific Variant: STP60NF06FP / STP60NF06 (commonly marked or referred to as P60NF60FP, P60NF60, or 60NF60)
