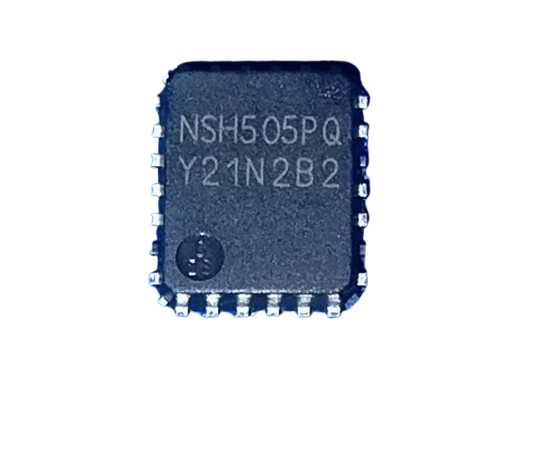

NSH505PQ MOSFET Power Driver Module PQFN-26(5x6) NCE

Product Features:

• 500V, 5A half-bridge intelligent power module
• Integrated MOSFET gate driver and bootstrap function
• Peak pulse current: 5A
• Supports 3.3V, 5V and 15V logic inputs
• Built-in under-voltage and cross-conduction protection
• Temperature sensing output for MCU control

Manufacturer: Wuxi NCE Power Co., Ltd
Manufacturer Part Number: NSH505PQ
Package: PQFN 5×6mm
Marking Code: NSH505PQ
Mounting Type: Surface Mount (SMD)
