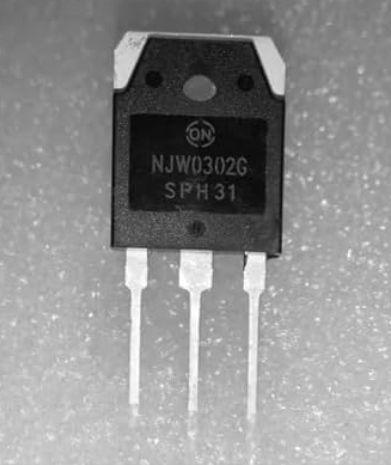

NJW0302G TRANSISTOR 250V 15A NPN TRANSISTOR onsemi NJW0302G

Product Overview

A high-power PNP bipolar junction transistor (BJT) specifically designed for high-fidelity audio amplifier output stages and linear power applications. (Note: While often listed as NPN in search queries, the NJW0302G is actually the PNP complement to the NPN NJW0281G). It delivers exceptional gain linearity, a wide safe operating area (SOA), and reliable high-frequency performance. Housed in a robust TO-3P package, it is the industry standard for high-end consumer audio receivers, professional power amplifiers, and stage sound systems.

Core Specifications

• Manufacturer: onsemi

• Package Type: TO-3P (Through-Hole)

• Component Type: PNP Silicon Power Transistor (Complement to NPN NJW0281G)

• Voltage Rating ($V_{CEO}$): 250V

• Current Rating ($I_C$): 15A (Continuous)

• Peak Current Rating ($I_{CM}$): 30A

• Power Dissipation ($P_D$): 150W

• DC Current Gain ($h_{FE}$): 75 to 150 (Highly linear from 50mA to 3A)

• Gain-Bandwidth Product ($f_T$): 30 MHz (Typical)

• Part Number: NJW0302G
