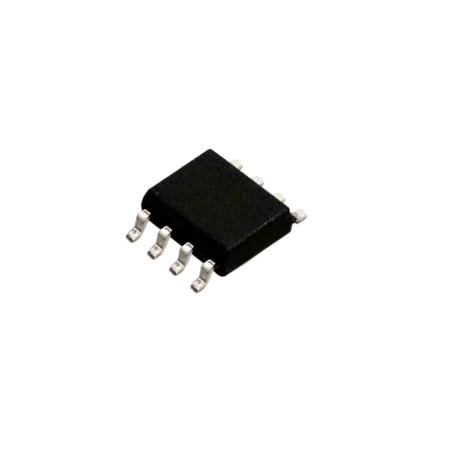

NE555 SMD IC Timer TI 555 SOP8 NE555- SOIC-8

Product Overview:

A precision timer integrated circuit capable of producing accurate time delays or oscillation. The SA555 is a versatile and widely used device that can operate in both monostable (single-shot) and astable (continuous) modes, with adjustable timing intervals controlled by simple external resistors and capacitors.

Core Specifications:

• Manufacturer: Texas Instruments

• Package Type: SOIC, PDIP, or TSSOP

• Function: Precision Timer

• Operating Modes: Astable or Monostable

• Output Drive Capability: Up to 200mA (source or sink), compatible with TTL logic

Features:

• Versatile Timing: Can produce delays ranging from microseconds to hours.

• Adjustable Duty Cycle: Allows for precise control over the pulse waveform in astable mode.

• High Output Current: Capable of driving loads directly, such as relays or LEDs, without additional amplification.

• Voltage Controlled: Features a control voltage pin that can be used to modify the trigger and threshold levels for specialized applications.

Applications:

• Pulse Generation: Ideal for pulse shaping, position modulation, and pulse width modulation (PWM).

• Timing Circuits: Used for sequential timers, delay intervals, and clock signal generation.

• Industrial Control: Serves as a reliable component for frequency division and signal timing in automated hardware.

• Signal Monitoring: Frequently used in missing-pulse detectors and pulse-train analysis.
