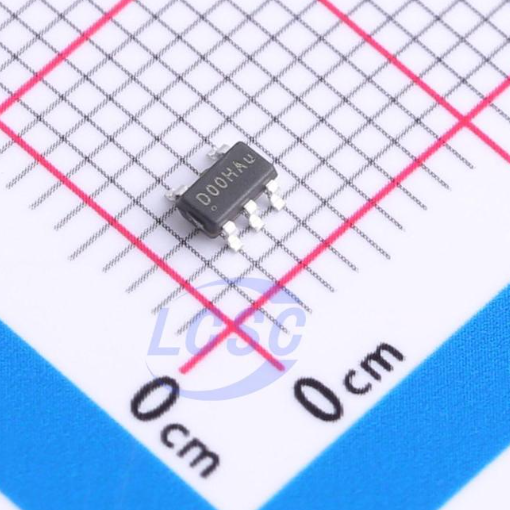

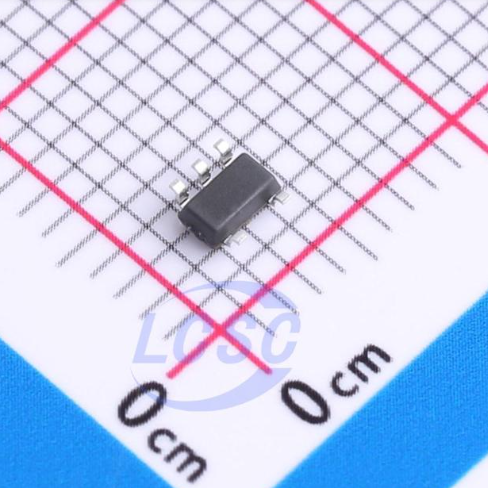

MT9700-N SMD 2A Power Distribution Switches SOT-23-5 D00HA XI'AN Aerosemi Tech

Edit

Product Features:

• Adjustable current-limited power distribution switch
• Integrated 80mΩ P-channel MOSFET
• Input voltage range: 2.4V to 5.5V
• Programmable current limit from 0.4A to 2A using external resistor
• Reverse current blocking when disabled
• Thermal shutdown and over-current protection
• Very low quiescent current: 25µA typ. ON, <1µA typ. OFF
• Suitable for USB hubs, battery chargers, and portable power management applications

Manufacturer: Xi’an Aerosemi Technology Co., Ltd.
Manufacturer Part Number: MT9700-N
Package: SOT23-5
Marking Code: D00HAW
Mounting Type: Surface Mount (SMD)
