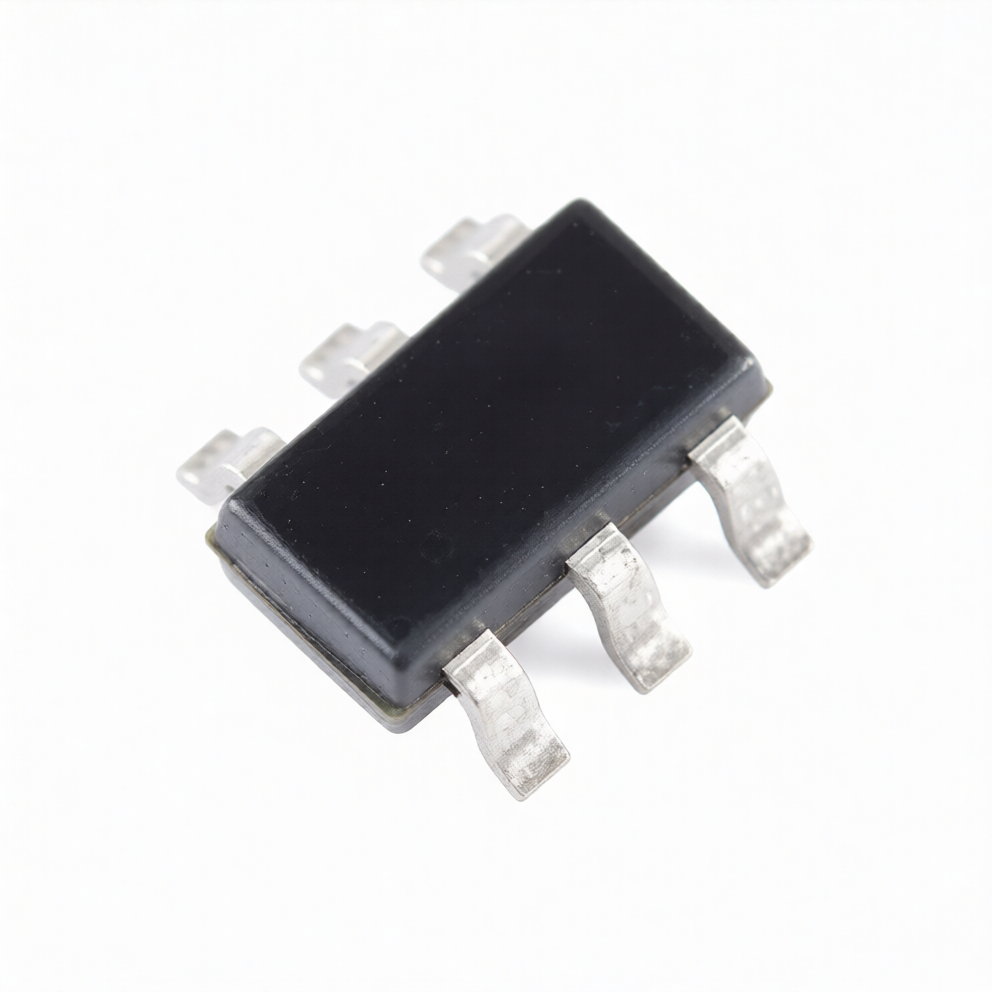

MT9284 SOT-23-6 High-Efficiency LED Driver IC 1.2MHz b11g8 XI'AN Aerosemi Tech MT9284-28J

Product Overview: The MT9284 is a high-efficiency step-up (boost) converter designed for driving up to 7 series white LEDs (WLEDs) from a single-cell Lithium-Ion battery. It utilizes current-mode, fixed-frequency architecture to regulate LED current, which is measured via an external current sense resistor, and includes integrated protections such as under-voltage lockout (UVLO), current limiting, and thermal overload protection.

Core Specifications:

• Manufacturer: Aerosemi

• Package Type: SOT23-6

• Function: 1.2MHz High Efficiency Boost White LED Driver

• Efficiency: Up to 90%

• Operating Frequency: 1.2 MHz constant frequency operation

• Shutdown Current: < 1 µA

• LED Drive Capability: Drives up to 7 series WLEDs

• Operating Temperature Range: -40°C to +85°C

Applications:

• Mobile phone and smart phone LED backlighting

• Camera flash white LED

• PDA LED backlighting

• Digital still cameras and camcorders
