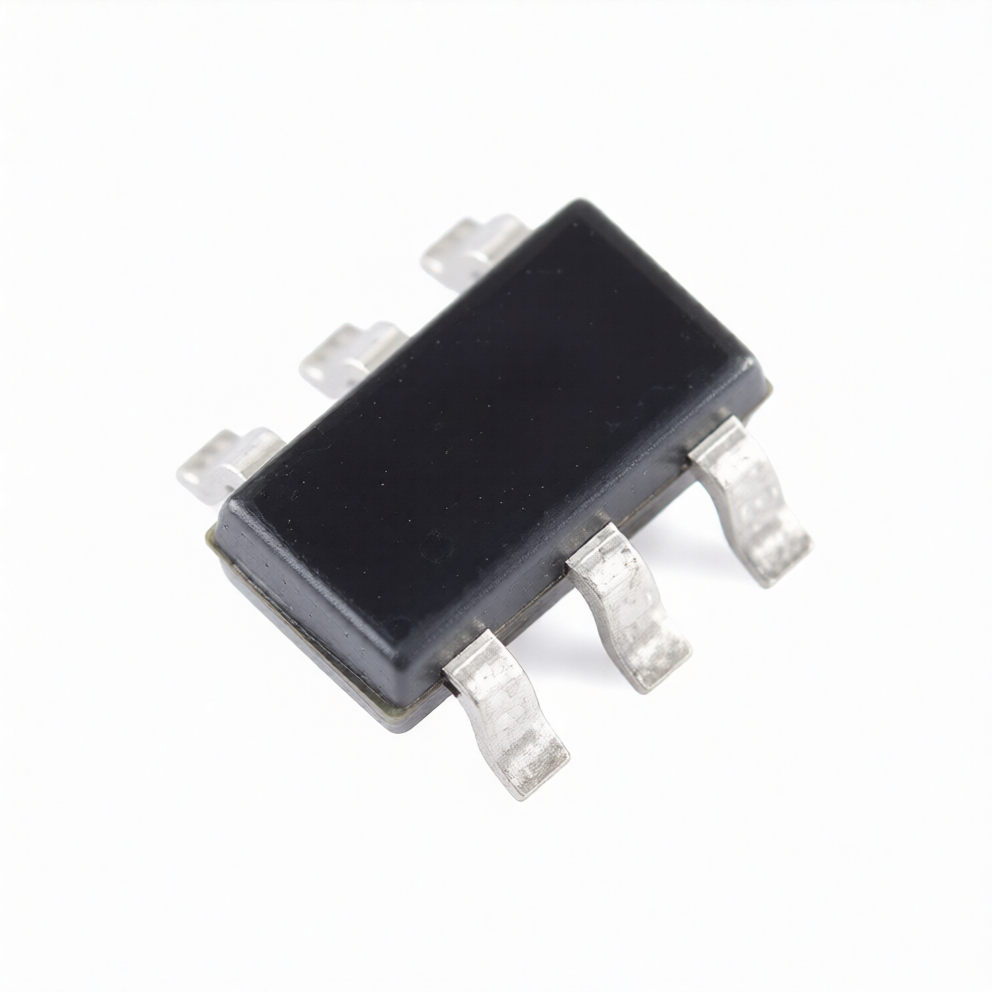

MT9201 SOT-23-6 High-Efficiency LED Driver IC 1.2MHz b9hb XI'AN Aerosemi Tech MT9201

Product Overview: The MT9201 is a high-efficiency, step-up (boost) converter designed for driving up to 7 series white LEDs (WLEDs) from a single-cell Lithium-Ion battery. It utilizes a current-mode, fixed-frequency architecture to regulate LED current, measured through an external sense resistor, and features a low 200mV feedback voltage to reduce power loss and improve overall system efficiency.

Core Specifications:

• Manufacturer: Aerosemi

• Part Number: MT9201

• Package Type: SOT23-6

• Function: 1.2MHz, 3V-24V Input Boost White LED Driver

• Efficiency: Up to 90%

• LED Drive Capability: Up to 7 series WLEDs

• Shutdown Current: <1 µA

• Operating Temperature: -40°C to +85°C

• Key Features: Internal power MOSFET, soft-start, undervoltage lockout (UVLO), thermal shutdown, and overvoltage protection.

Applications:

• Camera Flash White LED

• Mobile Phone and Smart Phone LED Backlighting

• PDA LED Backlighting

• Digital Still Cameras

• Camcorder
