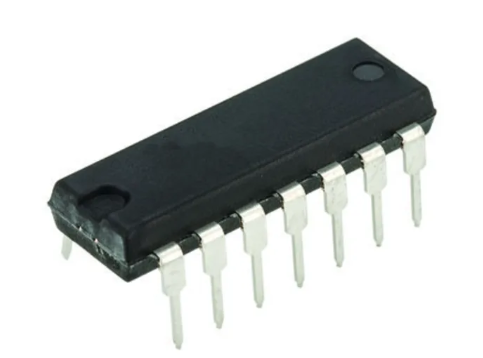

Msp430f2013 IC DIP14 TI MICRO CONTROLLERS MSP430F2013TN

Product Overview

An ultra-low-power, 16-bit mixed-signal microcontroller engineered for precise sensing, automation, and portable measurement applications. It integrates a high-performance 16-bit RISC architecture capable of up to 16 MHz speeds alongside a high-resolution 16-bit sigma-delta Analog-to-Digital Converter (ADC) with differential PGA inputs for precise analog data capture. Featuring 2 KB of flash memory, 128 bytes of RAM, an integrated 16-bit Timer_A, and five configurable power-saving modes, the chip is highly optimized to extend battery longevity in compact, resource-constrained environments.

Core Specifications

• Manufacturer: Texas Instruments (TI)

• Package Type: PDIP-14 (14-pin Plastic Dual Inline Package)

• Function: 16-Bit Ultra-Low-Power Sensing Microcontroller with 16-Bit Sigma-Delta ADC (MPN: MSP430F2013TN / LCSC Part #C2863850)

• Input Voltage: Low supply operational voltage range from 1.8V to 3.6V

• Control Interface: Universal Serial Interface (USI) accommodating synchronous SPI and I2C communication protocols, supported by programmable general-purpose I/O pins.
