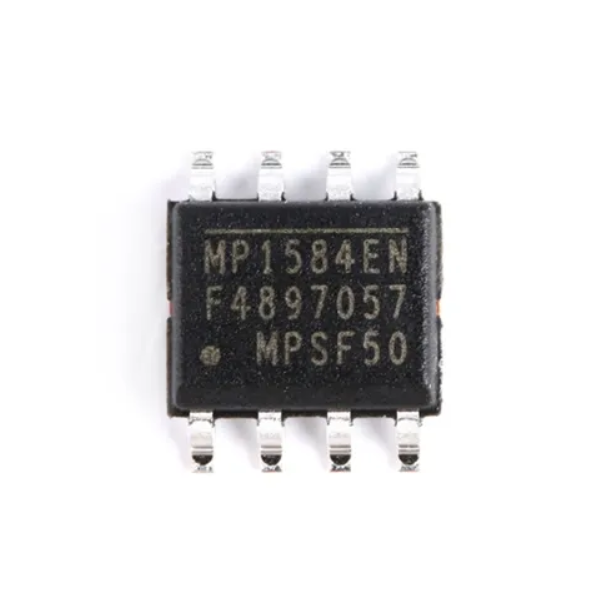

MP1584 SMD IC Step Down Converter 3A 1.5MHz 28V SOP-8 MP1584-SOP-8

Product Overview:

A surface-mount, current-mode monolithic buck switching regulator integrated circuit designed for highly efficient step-down voltage regulation. By integrating a high-side N-Channel power MOSFET, it converts a broad range of high input voltages down to lower regulated output levels with minimal external components. The current-mode control architecture provides fast load transient response and cycle-by-cycle current limiting, while low-frequency operation under light loads ensures maximum energy efficiency and low output voltage ripple.

Core Specifications:

Manufacturer: JSMSEMI (Shenzhen Jiashengwei Semiconductor Co., Ltd.)

Package Type: SOP8 / ESOP8 (Exposed Pad Small Outline Package)

Function: 3A 40V Asynchronous Step-Down Converter

Input Channels: 1 Power Input Channel (VIN) handling a wide operating voltage range

Control Interface: Direct Analog Control Interface featuring adjustable frequency (FREQ) and an Enable (EN) threshold input

Features

• Wide Operating Input Range: Supports high-voltage systems with an input power tolerance stretching from 4.5V up to 40V.

• High Output Current Delivery: Capable of supplying up to 3A of continuous output load current.

• Excellent Conversion Efficiency: Realizes up to 94 percent peak operating efficiency, maintaining greater than 78 percent efficiency during light load states.

• Adjustable Switching Frequency: Allows system designer tuning of the internal clock frequency via an external programming resistor.

• Integrated Soft-Start: Features internal soft-start circuitry to minimize current surge stresses during power initialization.

• Comprehensive Protection Suite: Guarantees absolute system robustness through built-in input under-voltage lockout, startup current run-away protection, output short protection, feedback short protection, and thermal shutdown security.

Applications

• Distributed Power Systems: Acts as a localized step-down power rail creator on complex multi-voltage circuit boards.

• Networking Systems: Directs voltage conversion for routers, modems, and network hub communications infrastructure.

• FPGA, DSP, and ASIC Power Supplies: Regulates clean, low-ripple high-current voltage rails necessary for deep logic computing chips.

• Green Electronics and Smart Appliances: Powers low-consumption home automated devices and standby power controllers.

• Notebook Computers: Standardizes battery or AC adapter raw inputs into fixed electronic sub-system supplies.
