MOT100N03MC MOSFET N-Channel TO251 MOT 30V 100A 100N03 MOT MOT100N03MC

Product Overview:

A through-hole N-channel trench power MOSFET designed for low-voltage, high-current switching applications such as DC-to-DC converters, power management systems, PWM motor controllers, server power supplies, and OR-ing circuits requiring exceptionally low on-resistance and minimal power dissipation.

Core Specifications:

Manufacturer: Guangdong Inmark Electronics Co., Ltd. (MOT Semiconductor)

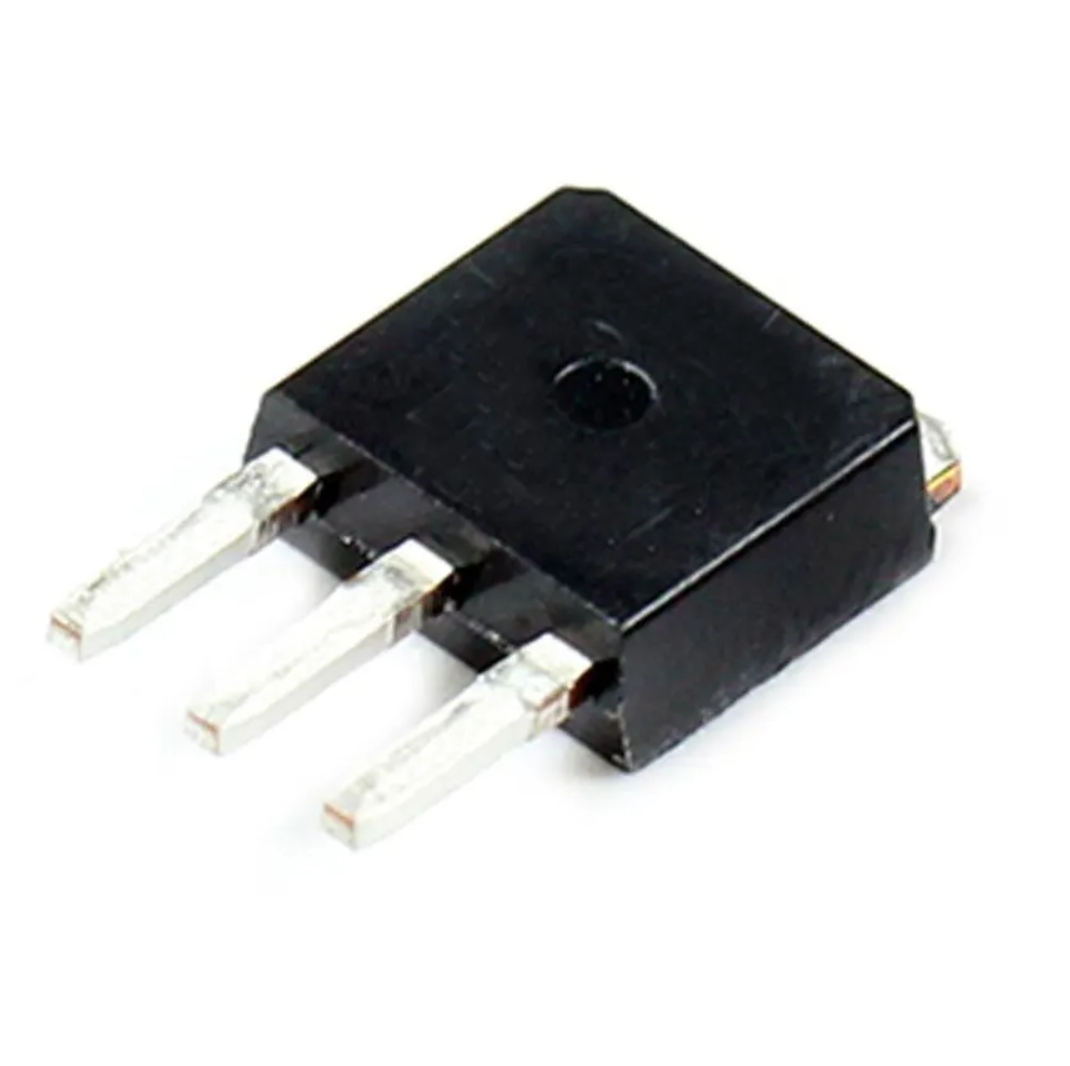

Package Type: TO-251 (I-PAK / Through-Hole)

Function: N-Channel Power MOSFET

Drain-Source Voltage (Vds): 30V

Continuous Drain Current (Id): 100A

On-State Resistance (Rds(on)): 3.4mΩ (Typical) / 4.5mΩ (Maximum)
