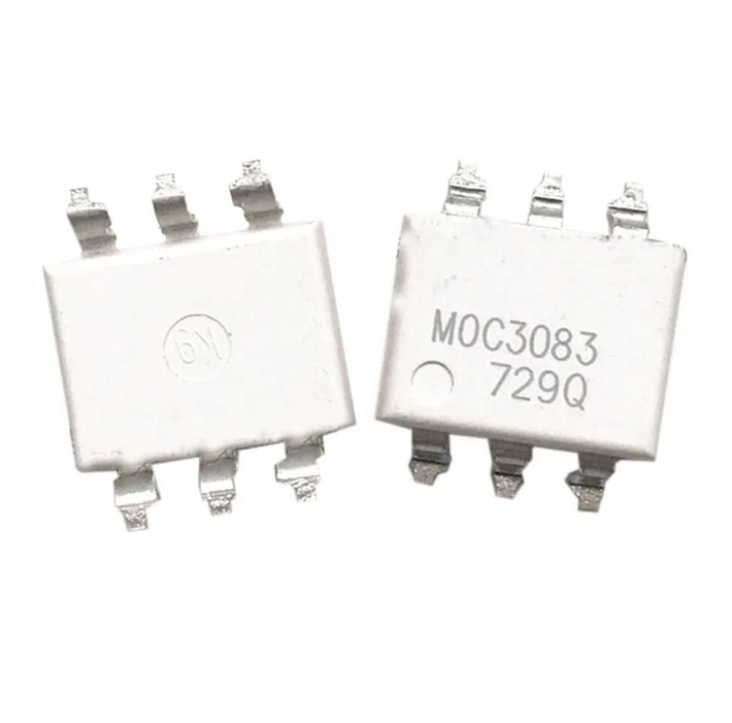

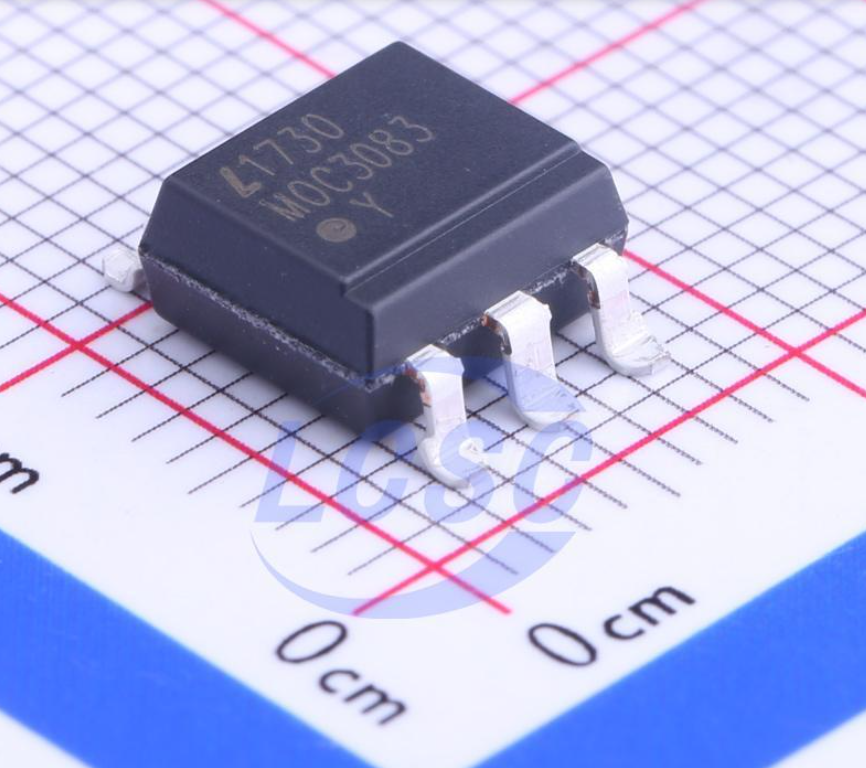

MOC3083S-TA1 SMD IC -6P Lite-On Opto isolators coupler 3083 MOC3083S-TA1

Product Overview:

A surface-mount, 6-pin zero-cross triac driver optoisolator (photocoupler) integrated circuit designed for isolated AC power control. It provides high galvanic isolation between low-voltage logic control circuits and high-voltage AC power loops, utilizing an internal zero-voltage crossing bilateral switch to reduce current inrush and minimize electromagnetic interference (EMI) during AC load switching.

Core Specifications:

Manufacturer: Lite-On Technology Corp.

Package Type: Surface Mount (SMD) Option (MOC3081S / MOC3082S / MOC3083S)

Function: Zero-Cross Triac Driver Optoisolator

Input Channels: 1 Channel (GaAs Infrared Emitting Diode Input)

Control Interface: Direct Logic Input / Current Drive (LED Trigger)

Features:

• High isolation voltage between input and output: 5,000 Vrms

• High repetitive peak off-state voltage ($V_{DRM}$): Minimum 800 V

• Exceptional critical rate of rise of off-state voltage ($dV/dt$): Minimum 1,000 V/µs

• Built-in zero-voltage crossing circuit to suppress electrical noise and switching transients

• Low LED trigger current required for latching the output ($I_{FT}$ max options of 15mA, 10mA, or 5mA)

• Lead-free, halogen-free, and RoHS compliant

Applications:

• Interfacing microprocessors or low-voltage controllers to 115/240 VAC peripherals

• Industrial controls and AC motor drives

• Solenoid/valve controls and static power switches

• Temperature and heating control systems

• Solid-state relays (SSRs) and lighting ballasts
