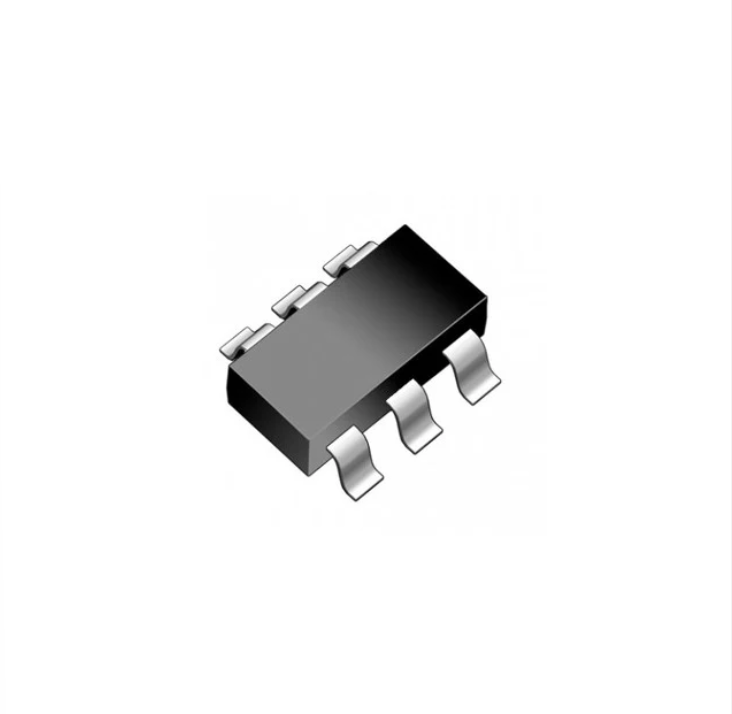

MOC3063S-TA1 SMD IC Lite-On Output optocoupler isolators MOC3063S-TA1

Product Overview:

A 6-pin zero-cross optoisolator triac driver integrated circuit designed for industrial power control, motor driving, and solenoid/valve control applications. It provides high-voltage isolation between low-voltage logic control and high-voltage AC loads.

Core Specifications:

Manufacturer: Lite-On Technology Corp.

Package Type: 6-pin DIP, wide lead spacing, or surface mounting (SMD)

Function: Zero-Cross Optoisolator Triac Driver

Input Channels: 1 Channel (Infrared Emitter to Triac Driver)

Control Interface: TTL/CMOS logic-compatible input (LED Anode/Cathode)

Features:

• Zero-crossing circuitry (switches at AC line voltage minimum to minimize switching noise)

• High isolation voltage ($V_{iso} = 5,000 V_{rms}$)

• High repetitive peak off-state voltage ($V_{DRM} = 600V$ minimum)

• High critical rate of rise of off-state voltage ($dV/dt = 1,000 V/µs$ minimum)

• Pb-free and RoHS compliant

Applications:

• AC motor starters

• Lighting controls

• Solenoid and valve control

• Solid-state relays

• Temperature controls for AC heating elements
