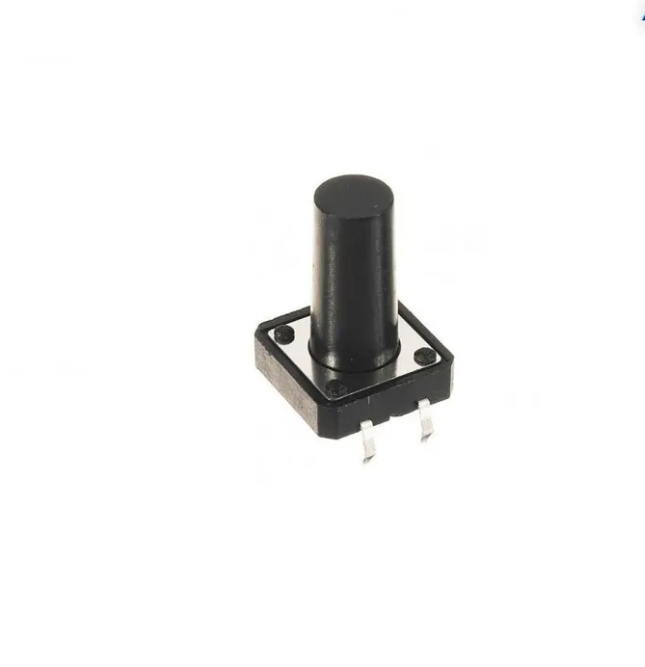

Micro Tactile Switch 6x6x17mm

Product Specifications

• Product Name: 6×6mm Tactile Push Button Switch 17mm

• Part Number:

• Type: Momentary Tactile Switch

• Contact Type: Normally Open (NO)

• Base Dimensions: 6mm × 6mm

• Total Height: 17mm

• Mounting Type: 4-Pin Through-Hole (DIP)

• Voltage Rating: 12V DC

• Current Rating: 50mA

• Contact Resistance: ≤100mΩ

• Operating Force: 130gf – 250gf
