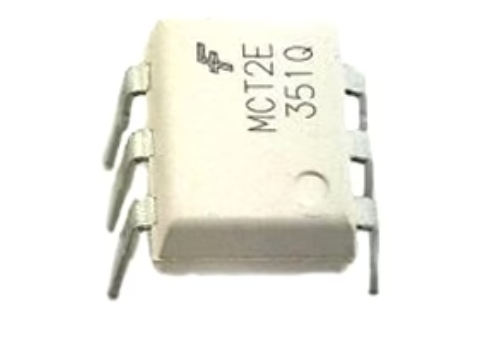

MCT2 IC Phototransistor Optocoupler DIP-6 MCT2

Product Overview

The MCT2 and TIL117M are general-purpose optocouplers that use a gallium arsenide infrared emitting diode to drive a silicon photo-transistor. These devices are housed in a 6-pin plastic dual-in-line package and are primarily used in power supply regulators, digital logic inputs, and microprocessor input applications.

Important Features

• Regulatory Compliance: The devices meet safety standards including UL1577 (4,170 VACRMS isolation for 1 minute) and DIN-EN/IEC60747-5-5 (850 V peak working insulation voltage).

• Current Transfer Ratio: The series provides specific minimum transfer ratios depending on the model, facilitating consistent signal transmission across isolated stages.

• Environmental Safety: These are Pb-Free (lead-free) devices.

• High Isolation: Features high isolation resistance exceeding 100 billion Ohms and low isolation capacitance of 0.2 pF.
