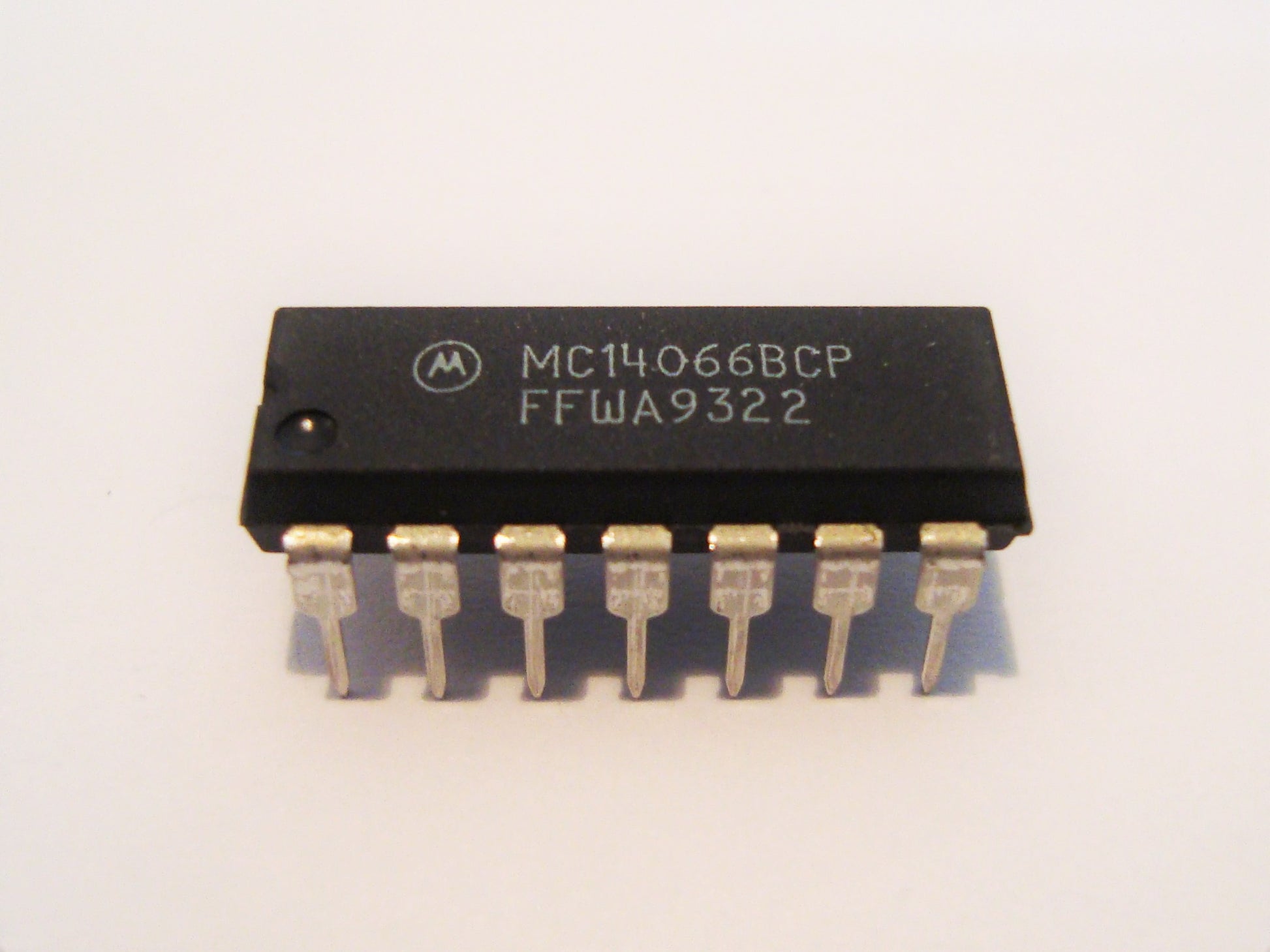

MC14066BCPG CD4066 IC DIP14 CMOS Switch MC14066B

Product Overview

The MC14066B is a quad analog switch and multiplexer designed to control both digital and analog signals. It features four independent bilateral switches, making it suitable for applications such as signal gating, chopping, modulation, demodulation, and CMOS logic implementation. This device is pin-compatible with the MC14016B but offers significantly lower ON resistance, allowing for improved performance in signal-handling applications.

Core Specifications

• Manufacturer: onsemi

• Package Type: Available in SOIC-14, SOEIAJ-14, and TSSOP-14

• Function: Quad Analog Switch/Quad Multiplexer

• Supply Voltage: 3.0 Vdc to 18 Vdc

• Control Interface: Four independent control inputs; a logic low signal turns the switch OFF, while a logic high signal turns the switch ON.
