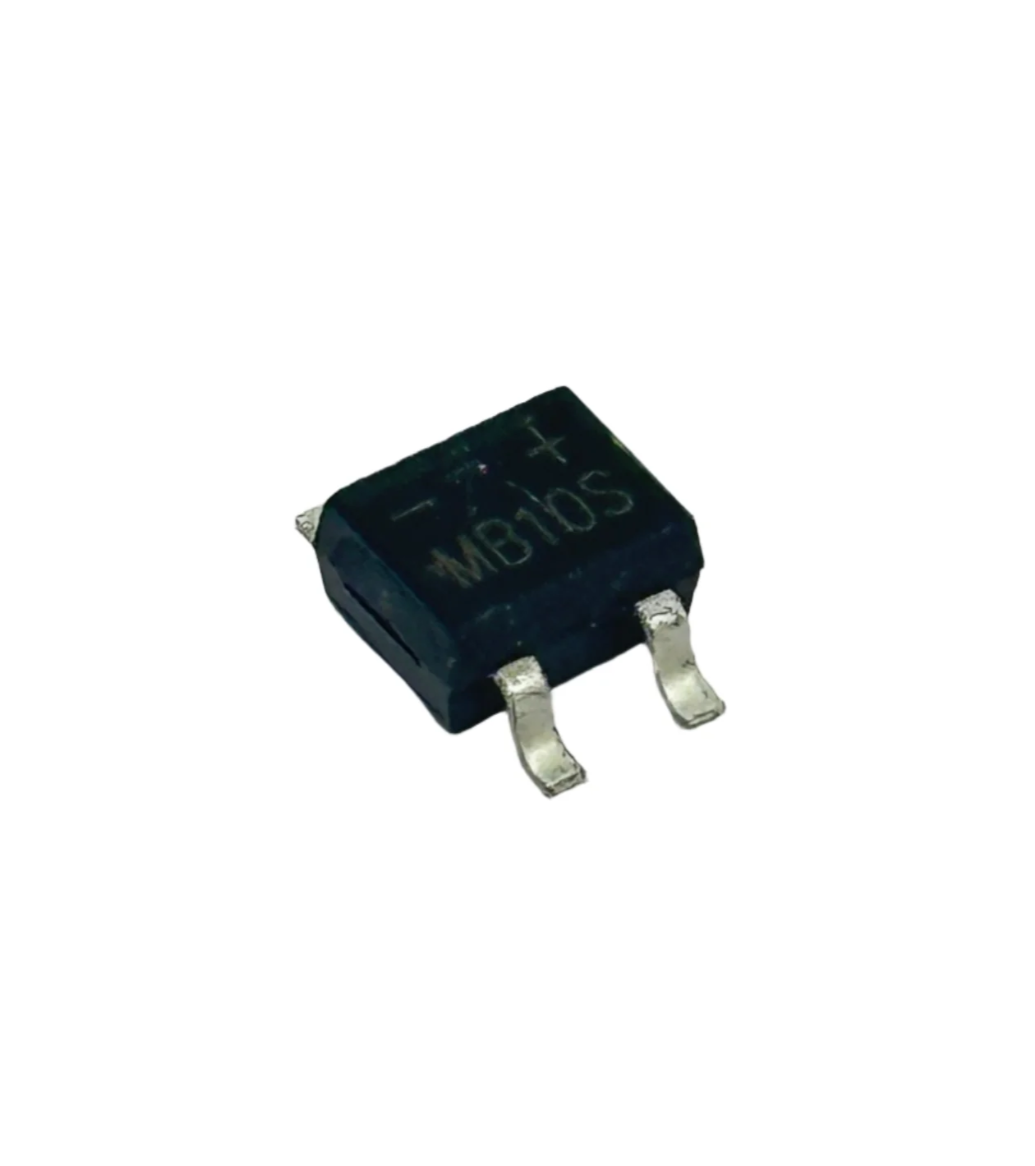

MB10S SMD IC Bridge Rectifier 0.5A YONGYUTAI MB10S

Product Overview:

A 1A surface-mount glass passivated bridge rectifier integrated circuit designed for applications requiring high surge current capability and reliable rectification of AC signals.

Core Specifications:

Manufacturer: YONGYUTAI

Package Type: MBS (Surface Mount)

Function: 1A Surface Mount Glass Passivated Bridge Rectifier

Reverse Voltage: 100 V to 1000 V (Model dependent: MB1S to MB10S)

Forward Current: 0.5A (Rated as 1A in product title, 0.5A in specific parameter constraints)

Pinning: 4-pin configuration (2 Input pins, Output Anode +, Output Cathode -)

Features:

• Glass Passivated Chip Junction

• High Surge Current Capability

• Designed for Surface Mount Application

• Terminals: Solderable per MIL-STD-750, Method 2026

Applications:

• Power supplies

• Battery charging circuits

• Consumer electronics

• AC-to-DC conversion for small appliances
