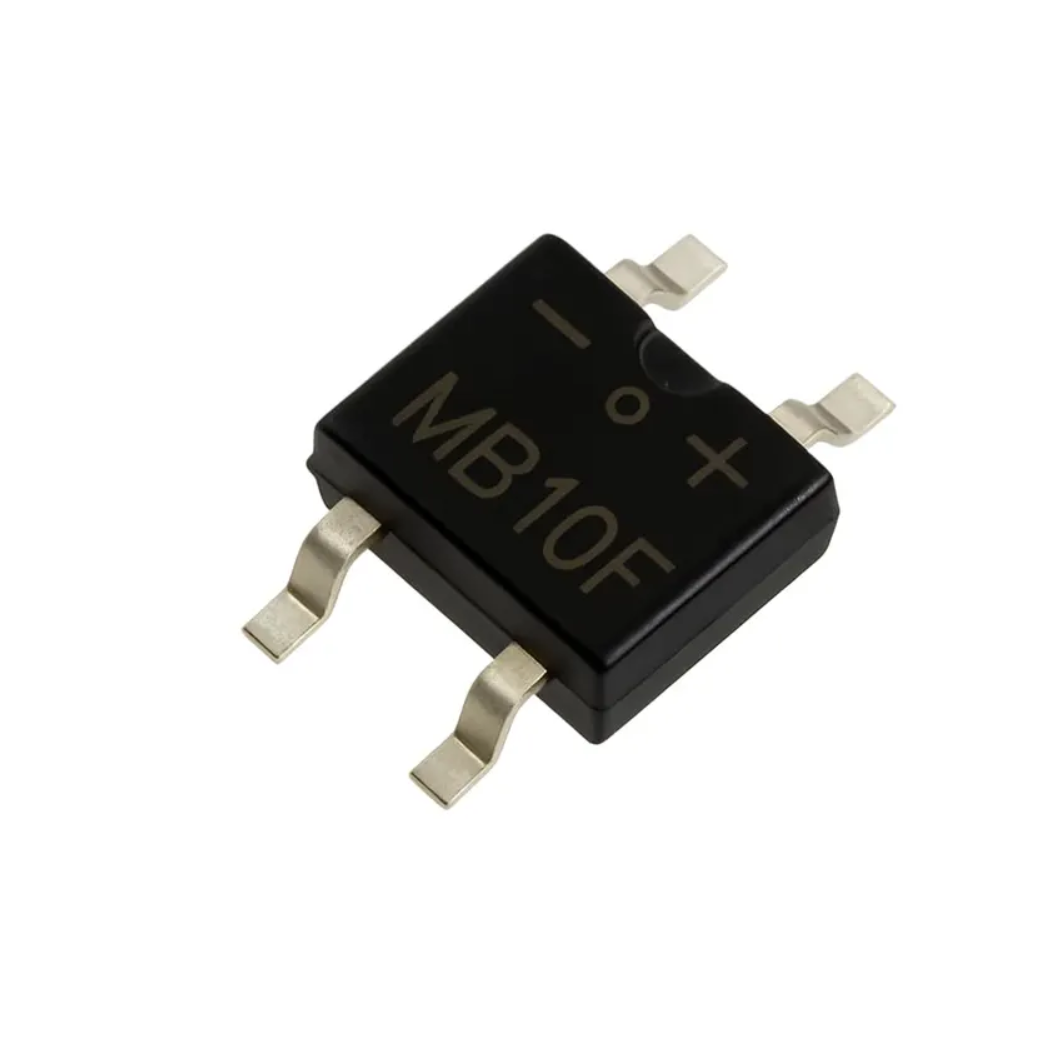

MB10F SMD IC bridge rectifier diode 1000V 0.8A MB10F

Product Overview:

The MB05F through MB10F series are glass-passivated bridge rectifiers designed for efficient AC-to-DC power conversion. These devices are housed in a compact MB-F surface-mount package, offering a space-saving solution for applications requiring reliable rectification.

Core Specifications:

• Manufacturer: Hottech Electronic

• Package Type: MB-F (Surface Mount)

• Function: Bridge Rectifier

• Reverse Voltage Range: 50V to 1000V (depending on the model)

• Mean Rectifying Current: 0.8A

Features:

• Efficiency: Features low forward voltage drop and low reverse leakage current, contributing to better energy efficiency.

• Reliability: Built with a glass-passivated die construction, providing improved robustness and stability.

• Surge Capability: High forward surge current capability allows the device to handle unexpected spikes in current safely.

• Safety: The molded plastic case is rated with a UL 94V-0 flammability classification.

Applications:

• Power Supplies: Commonly used for rectifying AC input to DC output in compact power adapters and chargers.

• Consumer Electronics: Ideal for small electronic devices where space on the circuit board is limited.

• Communication Equipment: Used for signal and power conditioning in various networking and telecommunication hardware.

• General Purpose Rectification: Suitable for any low-current AC-to-DC conversion requirement.
