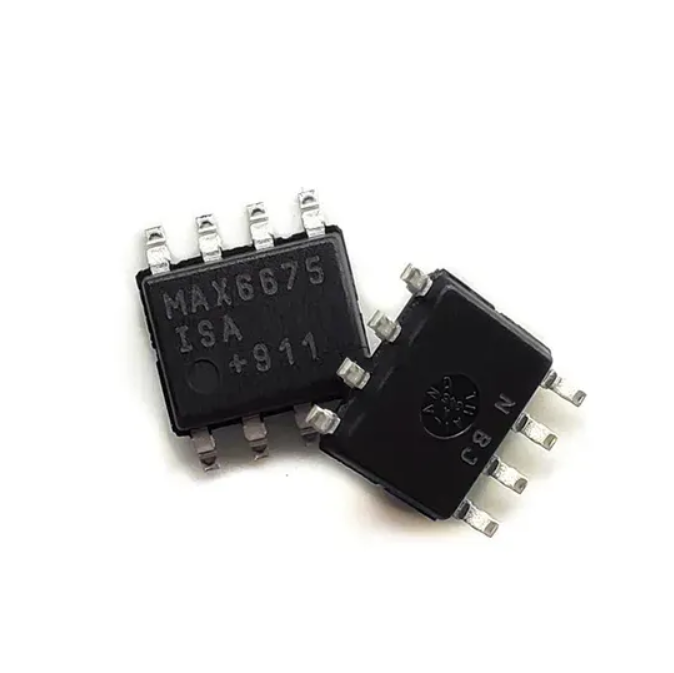

MAX6675ISA SMD IC MAX6675ISA-SOIC-8

Product Overview:

A surface-mount, cold-junction-compensated K-thermocouple-to-digital converter integrated circuit designed for high-resolution temperature measurement applications. It performs cold-junction compensation and digitizes the signal from a Type-K thermocouple, outputting data in a 12-bit resolution, SPI-compatible, read-only format to simplify interfacing with microcontrollers in demanding industrial, automotive, and commercial thermal environments.

Core Specifications:

Manufacturer: Maxim Integrated (now Analog Devices)

Package Type: 8-Pin SOIC (SOIC-8)

Function: Cold-Junction-Compensated K-Thermocouple-to-Digital Converter

Input Channels: 1 Thermocouple Input Channel (T+ and T-)

Control Interface: SPI-Compatible Simple 3-Wire Serial Interface
