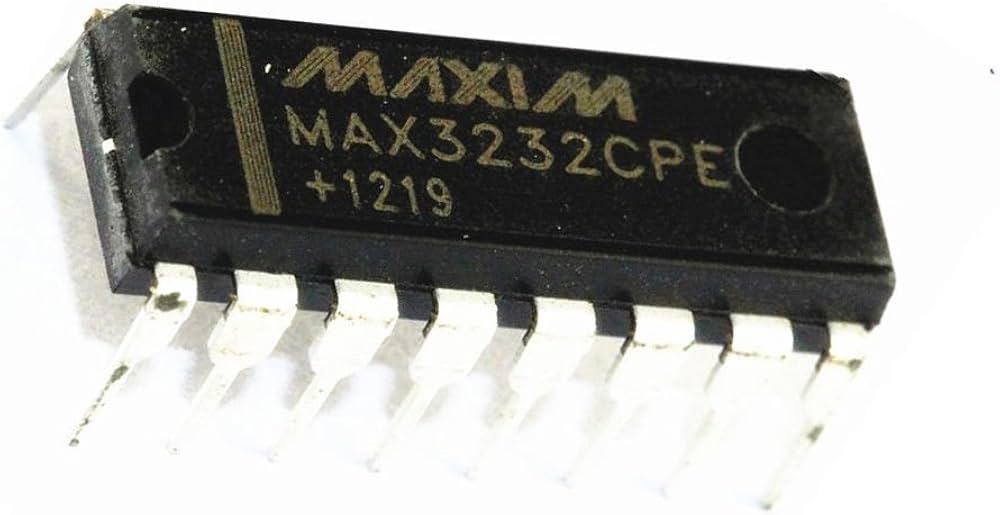

MAX 3232 IC RS-232 Line Driver/Receiver DIP-16 MAX 3232

Product Overview

The MAX3232 is a multichannel line driver and receiver designed for TIA/EIA-232-F and ITU V.28 communications interfaces. It features a dual charge-pump circuit that enables single-supply operation across a wide supply voltage range, while providing robust ESD protection on the bus terminals. The device contains two independent drivers and two independent receivers, making it suitable for compact data communication interfaces.

Core Specifications

• Manufacturer: Texas Instruments

• Function: Multichannel RS-232 Line Driver and Receiver
