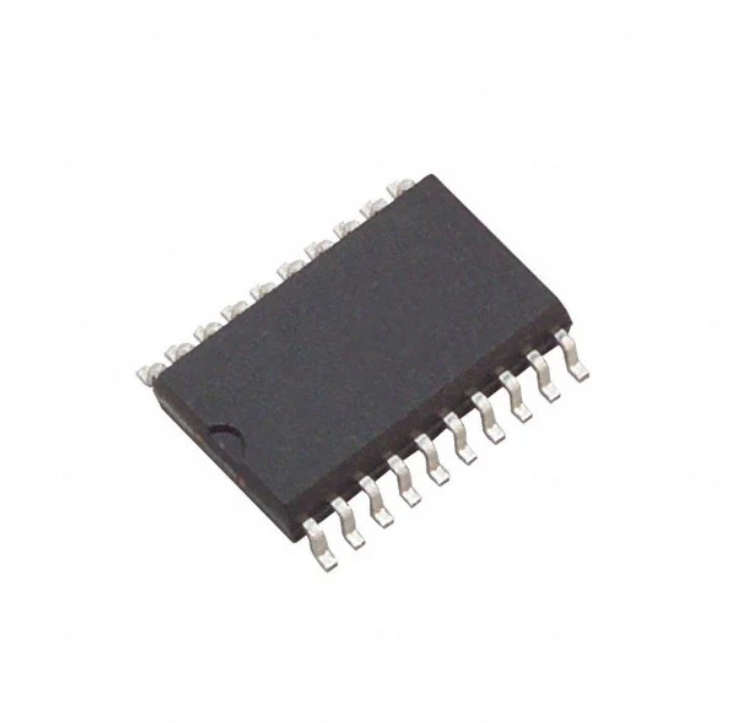

M74HCT541M1R SMD IC 74541 SOP20 ST M74HCT541

Product Overview: An advanced high-speed CMOS octal bus buffer with 3-state non-inverting outputs designed for TTL-compatible logic level interfacing.

Core Specifications:

• Manufacturer: STMicroelectronics

• Component Type: Octal Bus Buffer (Non-Inverting)

• Output Type: 3-State

• Propagation Delay (tpd): 14 ns (Typical at Vcc = 4.5V)

• Output Drive Capability: 6 mA (Minimum)

• Quiescent Current (Icc): 4 µA (Maximum at 25°C)

• Input Level Compatibility: TTL (VIH = 2.0 V Min, VIL = 0.8 V Max)

• Package Options: DIP, SOP, TSSOP
