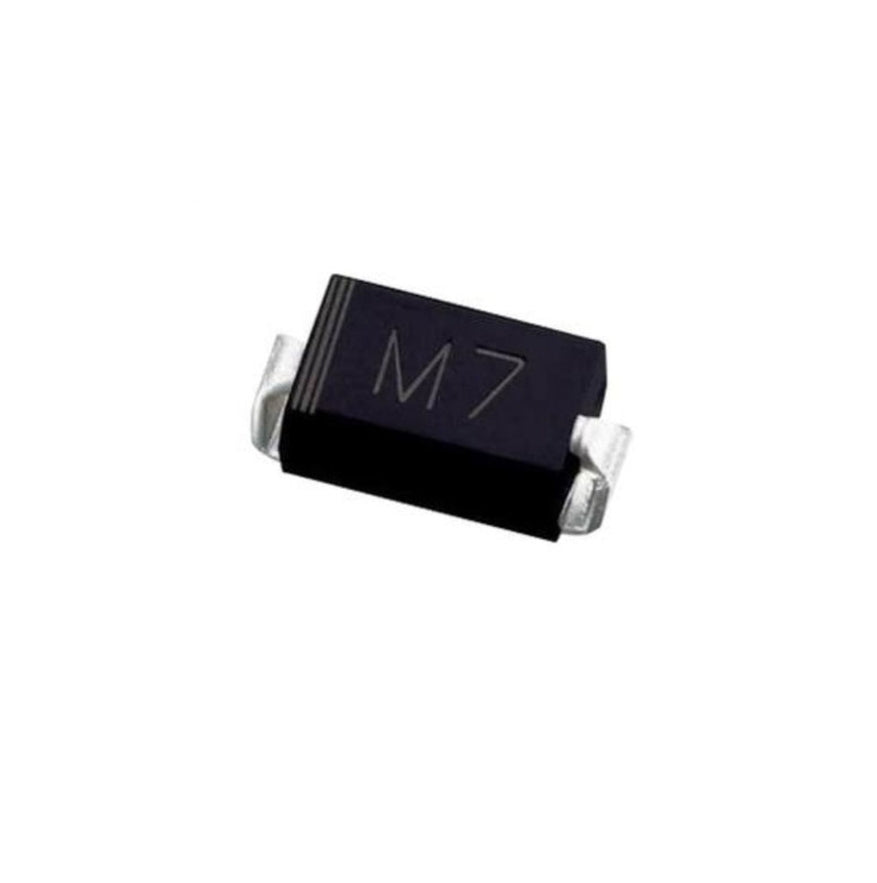

M7 Diode SMD hottech DO214AC 1A 1000V

The M7 is a 1000V, 1A surface-mount general-purpose rectifier diode manufactured by Guangdong Hottech Industrial Co., Ltd. (Hottech) for power supplies, AC-to-DC rectification, and reverse polarity protection applications. Housed in a compact surface-mount DO-214AC (SMA) molded plastic package, this discrete component features a single diode configuration designed with a low profile to optimize automated board placement. It operates with a maximum repetitive peak reverse voltage of 1000V and an average forward rectified current of 1A while exhibiting a maximum forward voltage drop of 1.1V at a 1A test current. Engineered with a high non-repetitive peak forward surge current capability of 30A and low reverse leakage current, this robust device delivers reliable performance across an operating junction temperature range from minus 50 to plus 150 degrees Celsius.
