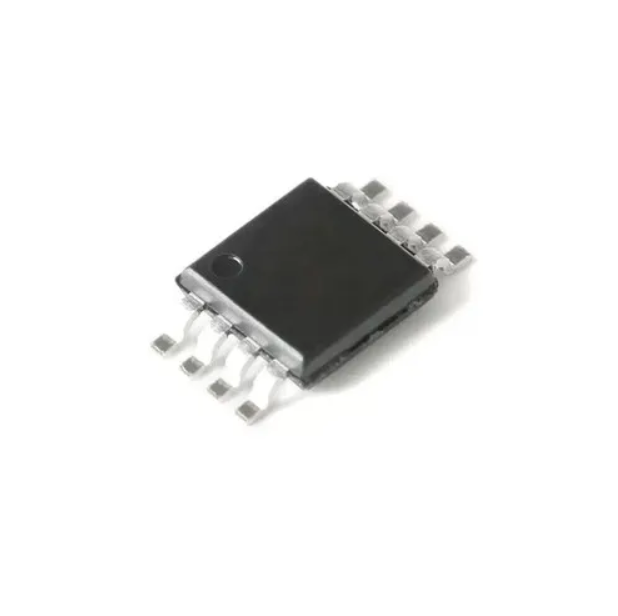

LP4056H SMD IC battery charger 4056 3.7V LP4056H

LP4056H SMD IC battery charger 4056 3.7V LP4056H

LP4056H

Rs. 7.00
Rs. 99.00 Rs. 7.00
Sale Sold out
Shipping calculated at checkout.

100 in stock

Product Overview:The LP4056H is a complete constant-current/constant-voltage linear charger for single-cell lithium-ion batteries. Designed for portable applications, it integrates power components and sensing circuitry into a small package to simplify battery management in compact electronics.

Core Specifications

  • Manufacturer: LowPower Semi

  • Package Type: ESOP-8 (with thermal pad)

  • Function: Standalone Linear Li-Ion Battery Charger

  • Input Voltage Range: 4.2V to 6.5V

  • Control Interface: Programmable via external resistor (Charge Current)

Features

  • Charging Precision: Delivers high-accuracy constant-current/constant-voltage charging with a preset 4.2V float voltage.

  • Thermal Regulation: Includes on-chip thermal feedback that automatically adjusts the charge current to limit die temperature during high-power operation or high ambient temperature conditions.

  • Safety Monitoring: Features automatic recharge, battery temperature monitoring (NTC interface), and protection against charge over-voltage.

  • Status Indication: Provides dual open-drain outputs for Charge Status (CHRG) and End-of-Charge (STDBY) indication.

  • Low Idle Current: Consumes minimal current in standby mode, extending system battery life.

Applications

  • Portable Electronics: Ideal for charging single-cell Li-Ion batteries in handheld devices, Bluetooth speakers, and wearable technology.

  • Consumer Appliances: Used in localized battery-powered modules where a standard 5V USB power rail is available.

  • Embedded Systems: Serves as a reliable, small-footprint solution for adding rechargeable battery functionality to PCB designs intended for JLCPCB assembly.
