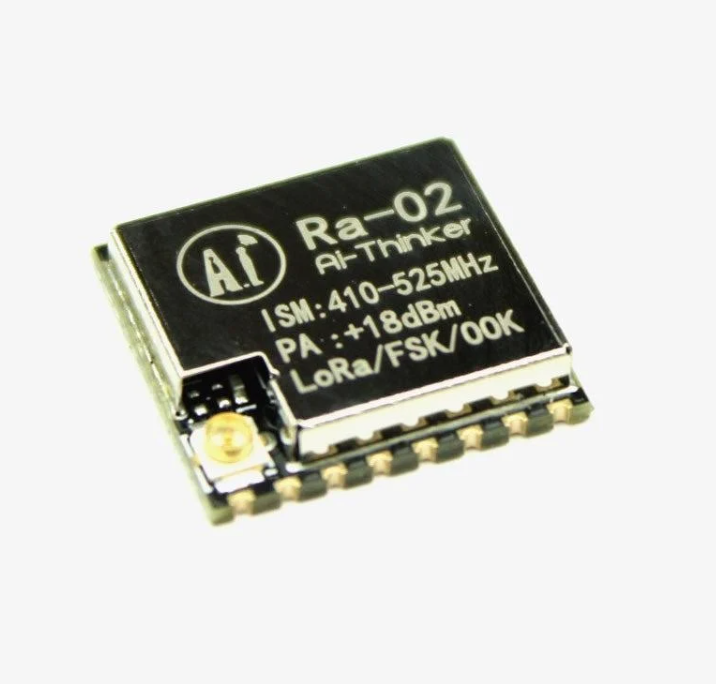

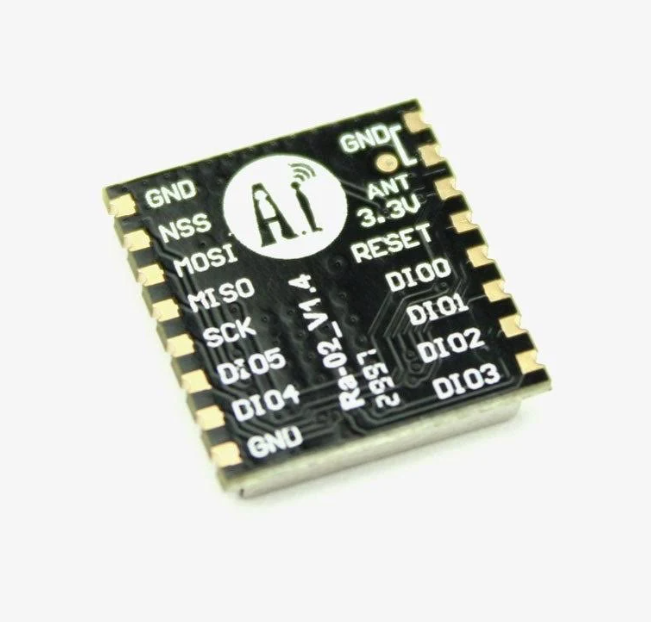

LoRa Ra-02 SX1278 433M 10KM Wireless Spread Spectrum Transmission Module IPEX Socket LoRa Ra-02

DESCRIPTION

The Lora Module Ra-02 is a wireless transmission module based on SEMTECH SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has a strong anti-jamming ability and has the function of air-alarm clock-up Consumption. can be covering thousands of people in the neighborhood environment, especially suitable for reading counters, smart home, alarm equipment.

SPECIFICATION

• Wireless Standard: 433MHz. | Frequency range: 420 - 450MHz.|Port: SPI/GPIO.
• Operating Voltage: 1.8 - 3.7V, default 3.3V. Working Current, receive: less than 10.8mA(LnaBoost closed, Band 1), transmit: less than 120mA(+20dBm). Sleep model: 0.2uA. Working temperature: -40- +85 degrees. Pin pitch: 2.0 mm.
• Distance: 10 KM in Open Area
