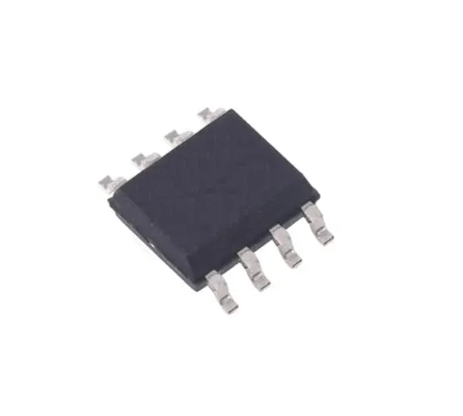

LMC555DRG SMD IC Timer HANSCHIP LMC 555 SOP8 LMC555DRG

Product Overview:

A CMOS-based, general-purpose timing integrated circuit designed for precise time-delay generation, pulse-width modulation (PWM), and oscillator applications. It serves as an improved-performance, pin-compatible replacement for standard NE/SE555 bipolar timers, offering significantly lower power consumption and higher frequency operation.

Core Specifications:

Manufacturer: Hanschip Semiconductor

Package Type: Available in DIP-8, SOP-8, and MSOP-8 packages

Function: CMOS General Purpose Timer

Input Channels: N/A (Timing/Oscillator Component)

Control Interface: N/A (Analog/Digital Triggering via Threshold and Trigger pins)

Features:

• Wide supply voltage range: 2V to 18V

• High-speed operation: Up to 500 kHz guaranteed

• Low supply current, significantly reducing power dissipation compared to bipolar versions

• High output source/sink driver capability (compatible with TTL/CMOS logic)

• Timing accuracy ranging from microseconds through hours

• Operates in both astable and monostable modes with adjustable duty cycle

Applications:

• Precision timing and time-delay generation

• Pulse and signal shaping

• Pulse-width modulation (PWM) and pulse-position modulation

• Industrial and consumer electronic timing applications

• General-purpose clock/oscillator circuit design
