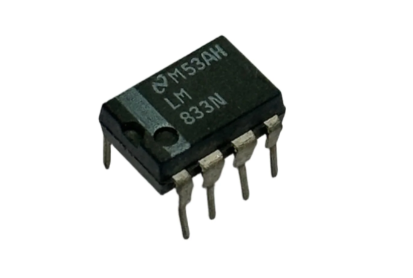

LM833 IC Dual Operational Amplifier DIP-8 LM833

Product Overview: LM833 Dual High-Speed Audio Operational Amplifier

The LM833 is a dual, high-performance operational amplifier specifically designed for high-quality audio and data-signal applications. It is widely used in HiFi audio systems, preamplification and filtering stages, and set-top boxes, as well as general-purpose amplifier applications. The device is pin-for-pin compatible with industry-standard dual operational amplifiers, making it an easy replacement in existing designs.

Important Features

The LM833 offers a robust set of features optimized for audio performance:

• Audio Quality: Features exceptionally low total harmonic distortion (THD) of 0.002% and low noise voltage of 4.5 nV/√Hz.

• Operating Range: Supports dual-supply operation from ±5 V to ±18 V.

• Speed and Bandwidth: Boasts a high gain bandwidth product of 16 MHz and a high slew rate of 7 V/µs.

• Precision: Includes low input offset voltage (0.15 mV) and excellent gain and phase margins.

• Performance: Provides a large output-voltage swing (up to -14.6 V to 14.1 V) with no deadband crossover distortion.
