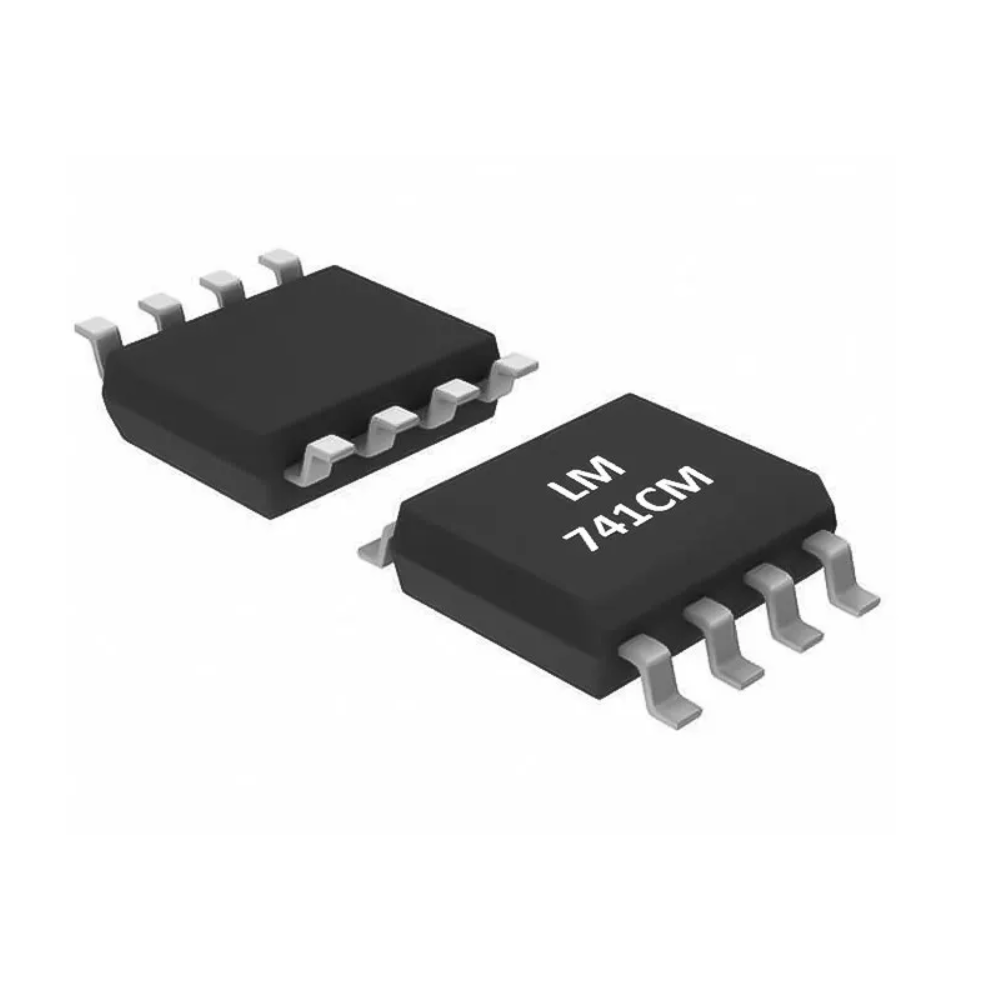

LM741 SMD IC General-Purpose Operational Amplifier Texas Instruments LM741-DIP8

Product Overview: The LM741 series consists of general-purpose operational amplifiers known for their improved performance over earlier industry standards like the LM709. They serve as direct plug-in replacements for components such as the 709C, LM201, MC1439, and 748. The amplifiers are designed to be "nearly foolproof," featuring overload protection on both the input and output, and they avoid latch-up when the common-mode range is exceeded.

Core Specifications

•

  Manufacturer: Texas Instruments

•

  Package Types: TO-99 (8-pin), CDIP (8-pin), PDIP (8-pin)

•

  Function: General-purpose operational amplifier

•

  Supply Voltage (LM741, LM741A): ±22 V max

•

  Supply Voltage (LM741C): ±18 V max

•

  Input Voltage: ±15 V

•

  Differential Input Voltage: ±30 V

•

  Power Dissipation: 500 mW

•

  Operating Temperature (LM741, LM741A): -55°C to +125°C

•

  Operating Temperature (LM741C): 0°C to +70°C

Features

• Overload protection on the input and output

• No latch-up when the common-mode range is exceeded

• Freedom from oscillations

• Single or dual power supply operation

Applications

The LM741 is suitable for a wide range of analog applications, including:

• Comparators

• Multivibrators

• DC Amplifiers

• Summing Amplifiers

• Integrators or Differentiators

• Active Filters
