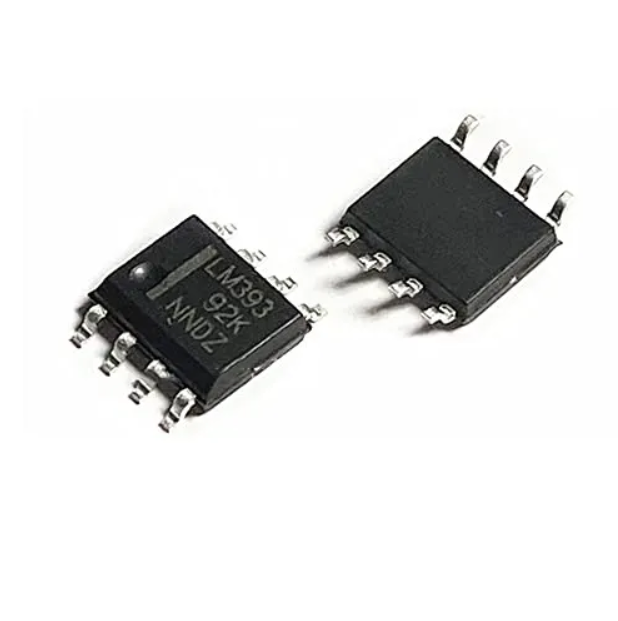

LM393 SMD IC op amp SOP-8 LM393

Product Overview:

The LM393 HF is a dual voltage comparator integrated circuit featuring an open-collector output. It is designed for versatility, capable of operating from either a single power supply or dual power supplies, and includes features like temperature stability and output short-circuit protection, making it well-suited for integration into digital systems using a standard 5V supply.

Core Specifications:

• Manufacturer: MSKSEMI Semiconductor

• Package Type: DIP8 or SOP8

• Function: Dual Voltage Comparator

• Supply Voltage Range: 2V to 32V (Single Supply) or up to ±16V (Dual Supply)

• Output Type: Open-Collector

Features:

• Low Saturation Voltage: Typically 0.1V at a load current of 4mA.

• Low Power Consumption: Typically 0.6mA at 5V supply.

• Input Offset Voltage: Low typical value of ±1mV.

• Flexible Powering: Wide supply voltage range allows for operation in various digital and analog environments.

• Integrated Protection: Includes output short-circuit protection for increased reliability.

Applications:

• Voltage Level Detection: Used in circuits designed to identify specific voltage thresholds.

• Voltage Transformation: Suitable for analog-to-digital interface applications.

• General Purpose Electronics: Can be utilized in diverse industrial and consumer electronic hardware where signal comparison is required.
