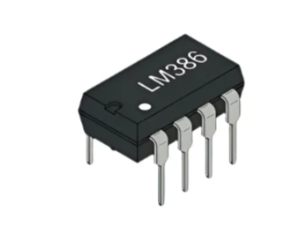

LM386 IC Low Voltage Audio Power Amplifier DIP-8 LM386

Product Overview

The LM386 is a low-power audio amplifier designed for battery-operated consumer applications. Its internal gain is set to 20, which can be increased up to 200 using an external resistor and capacitor. The device features a ground-referenced input and self-centers the output voltage at half the supply level. It offers low distortion and requires minimal external components, making it ideal for portable audio devices.

Core Specifications

Manufacturer: Texas Instruments

 Function: Low Voltage Audio Power Amplifier
