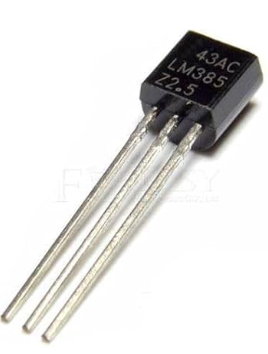

LM385 IC Adjustable Voltage Reference LM385

Product Overview

The LM185-ADJ is a three-terminal adjustable band-gap voltage reference diode designed for micropower applications. It operates by maintaining a stable reference voltage between 1.24V and 5.30V. Because it is built using only transistors and resistors, it provides low noise and excellent long-term stability, making it ideal for portable equipment and precision voltage regulation.

Important Features

• Adjustable Output: The reference voltage can be set anywhere from 1.24V to 5.30V to suit specific circuit requirements.

• Wide Operating Range: Functions efficiently with an operating current ranging from 10 microamps to 20 milliamps.

• High Stability: Features a low temperature coefficient and low dynamic impedance, ensuring the voltage remains steady despite temperature changes or load variations.

• Load Tolerance: Designed to be tolerant of capacitive loading, simplifying its integration into a wide variety of reference and regulator circuits.
