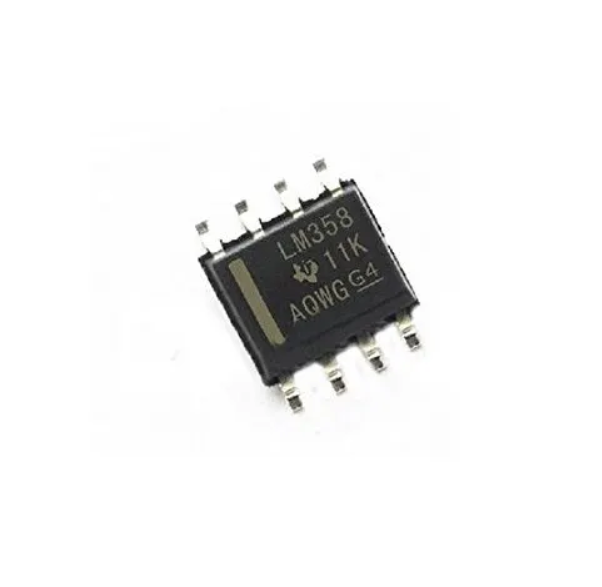

LM358D SMD IC SOIC8 op-amp LM358DT

Product Overview:

The LM158, LM258, and LM358 series are high-gain, dual operational amplifiers (op-amps) designed by STMicroelectronics. These devices are internally frequency-compensated and specifically engineered to operate from a single power supply over a wide range of voltages. Their low power consumption remains largely independent of the supply voltage magnitude, making them versatile for various analog signal processing tasks.

Core Specifications:

• Manufacturer: STMicroelectronics

• Package Type: DFN8 2x2, MiniSO8, TSSOP8, SO8

• Function: Low-power dual operational amplifier

• Supply Voltage Range: Operates from a wide range of single or dual supply voltages

• Bandwidth: 1.1 MHz (unity gain, temperature compensated)

Features:

• Versatile Powering: Designed for efficient operation from a single power supply, such as the standard 5V used in logic systems.

• Stable Performance: Features internal frequency compensation and temperature-compensated input bias currents.

• High DC Gain: Provides a large DC voltage gain of 100 dB.

• Wide Input Range: The input common-mode voltage range includes the negative rails.

• Low Offset: Offers low input offset voltage (2 mV) and low input offset current (2 nA).

Applications:

• Signal Conditioning: Ideal for transducer amplifiers and general DC gain blocks.

• Analog Interface: Simplifies implementation in single-power-supply systems, such as interfacing with 5V logic.

• Conventional Op-Amp Circuits: Suitable for all standard operational amplifier circuit implementations, including filters, integrators, and comparators.

• Instrumentation: Useful in measurement equipment where low-power, high-gain signal amplification is required.
