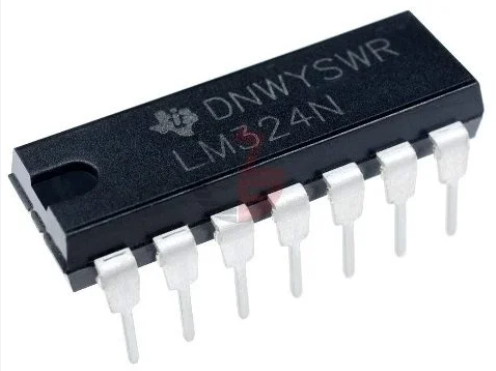

LM324N IC DIP14 OP AMP LM324-N

Product Overview

The LM324-N- consists of four independent, high-gain, internally frequency-compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. It can also operate from split-power supplies while maintaining a low power supply current drain that is independent of the magnitude of the supply voltage. This quad-amplifier is highly suited for transducer amplifiers, DC gain blocks, and conventional op-amp circuits implemented in single-supply digital systems.

Core Specifications

• Manufacturer: Texas Instruments

• Package Type: 14-Pin PDIP (Plastic Dual In-Line Package) or SOIC (Small Outline Integrated Circuit)

• Function: Quad Low-Power Operational Amplifier

• Input Voltage: Single supply from 3V to 32V, or dual supplies from positive or negative 1.5V to positive or negative 16V

• Control Interface: Four independent sets of operational amplifier inputs (inverting and non-inverting) driving four corresponding output pins, sharing common power supply pins.
