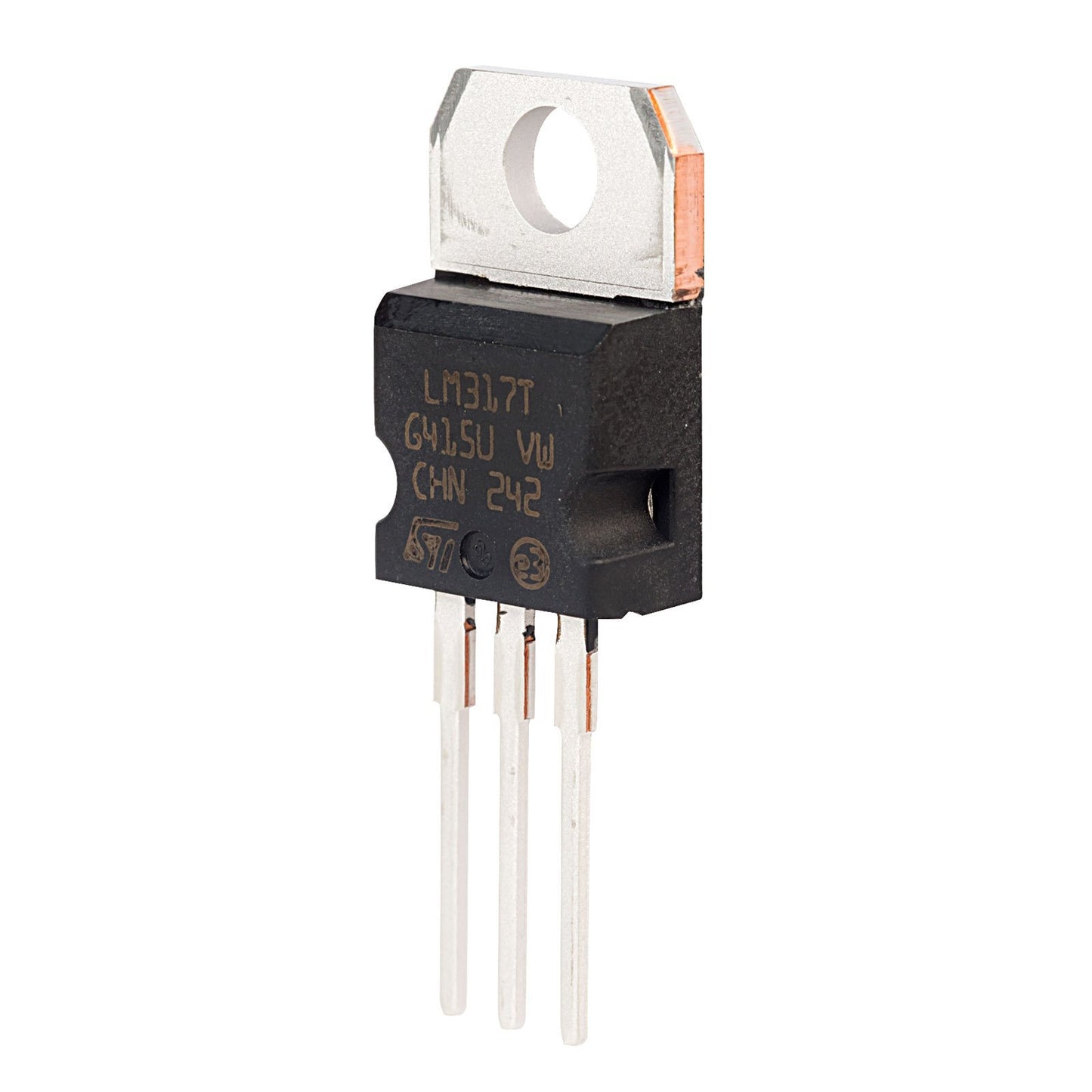

LM317T-DG IC ST 1.5A TO220 LM317T-DG

Product Overview: A monolithic integrated circuit positive adjustable voltage regulator designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 V to 37 V range.

Core Specifications:

• Manufacturer: STMicroelectronics

• Package Type: TO-220 (Double Gauge)

• Output Voltage Range: 1.2 V to 37 V

• Output Current Capability: > 1.5 A

• Operating Junction Temperature: 0°C to 125°C

• Reference Voltage (Typical): 1.25 V

• Line Regulation (Typical): 0.01% / V

• Load Regulation (Typical): 0.1%

• Integrated Protection: Current limiting, thermal shutdown, and safe operating area (SOA) control
