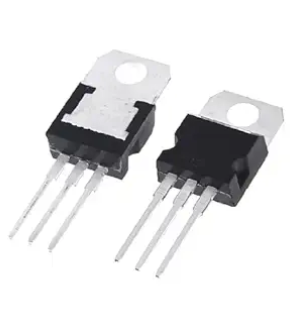

LM317 IC 1.2-37V/1.5A TO-220 – Adjustable Voltage Regulator LM317

Product Overview

The LM317 is an adjustable 3-terminal positive voltage regulator capable of supplying in excess of 1.5 A over an output voltage range of 1.2 V to 37 V. It is exceptionally easy to use and requires only two external resistors to set the output voltage. The device employs internal current limiting, thermal shutdown, and safe-area compensation, making it essentially blow-out proof. It is widely used for local on-card regulation, programmable output regulation, and precision current regulation.

Core Specifications

• Manufacturer: Xinbole (XINBOLE)

• Function: High Current Adjustable Positive Voltage Regulator

• Output Current: In excess of 1.5 A

• Output Voltage Range: Adjustable between 1.2 V and 37 V

• Protection Features: Internal thermal overload protection, internal short-circuit current limiting, and output transistor safe-area compensation

• Operation: Floating operation for high-voltage applications

• Available Packages: SOT-223, TO-220, TO-252, TO-263
