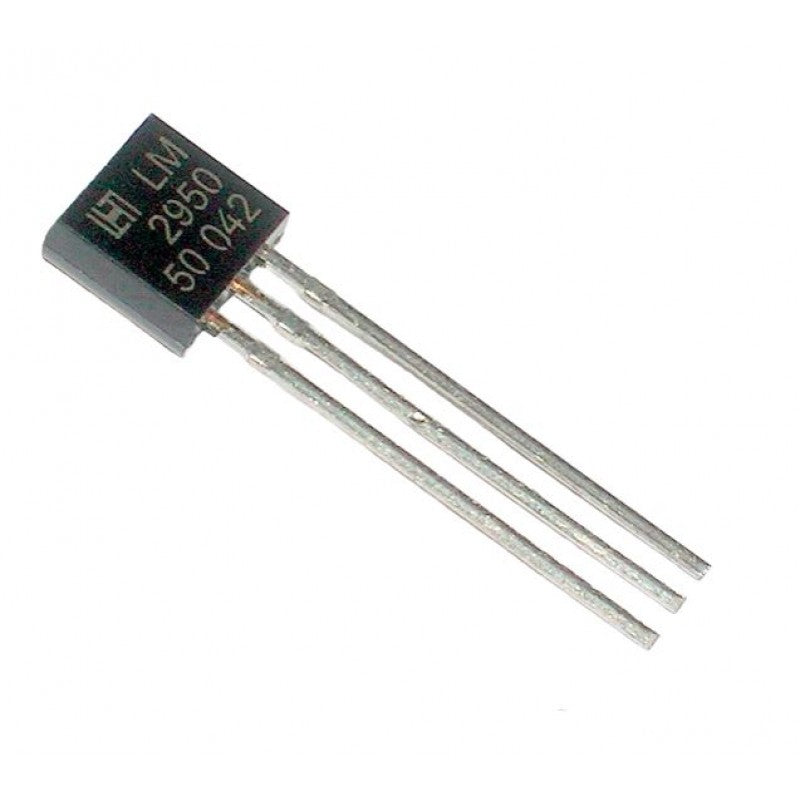

LM2950G-3.3 3.3V IC Voltage regulator 100MA TO-92 HTC 2950 LM2950G-3.3

Product Overview: A low-power, low-dropout linear voltage regulator configured for a fixed 3.3V output.

Core Specifications:

• Base IC: LM2950

• Output Voltage: 3.3V (Fixed)

• Output Current: 100mA maximum

• Dropout Voltage: 380mV typical at 100mA load

• Quiescent Current: 75µA typical

• Package Type: TO-92
