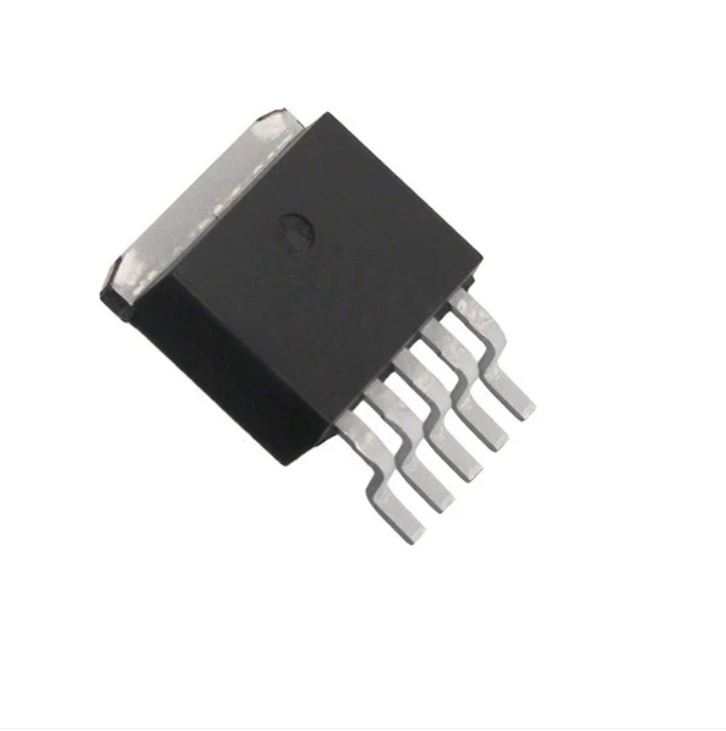

LM2596HVGR-5.0 SMD IC voltage regulator LM2596 HTC 5V HTC LM2596HVGR-5.0

Product Overview:

A 60V, 3A, 150KHz fixed-frequency step-down (buck) switching regulator integrated circuit designed for high-efficiency power conversion in applications such as on-card switching regulators and pre-regulators for linear supplies.

Core Specifications:

Manufacturer: HTC

Package Type: TO-220, TO-263, and SOP-8PP

Function: Step-down Switching Regulator (Buck)

Input Voltage: Up to 60V

Output Current: Guaranteed 3A

Features:

• Adjustable version output voltage range: 1.23V to 57V

• Excellent line and load regulation specifications

• Low power standby mode (typically 30µA)

• Thermal shutdown and current limit protection

• High efficiency with only 4 external components required

Applications:

• Efficient pre-regulator for linear regulators

• On-card switching regulators

• Simple high-efficiency step-down (buck) regulator designs
