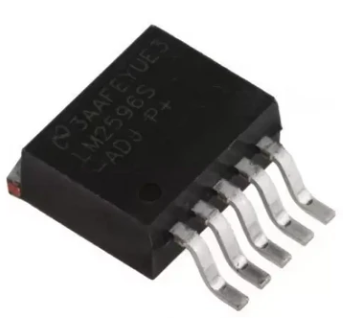

LM2596 IC Adjustable Negative Voltage Regulator LM2596

Product Overview

The LM2596 series consists of monolithic integrated circuits designed as easy-to-use step-down (buck) switching regulators. These devices are capable of driving a 3.0A load with excellent line and load regulation. They operate at a fixed switching frequency of 150 kHz, allowing for smaller-sized filter components compared to lower-frequency switching regulators. The series is highly efficient and features a TTL-compatible shutdown capability and thermal shutdown/current limit protection.

Core Specifications

• Manufacturer: HTC (Semiconductor)

• Function: 3.0A, 150kHz Step-Down Switching Regulator

• Output Versions: 3.3V, 5.0V, 12V, 15V, and Adjustable

• Output Voltage Range (Adjustable Version): 1.23V to 37V

• Guaranteed Output Current: 3.0A

• Switching Frequency: 150 kHz (Fixed)

• Protection: Thermal shutdown and current limit protection

• Control Interface: TTL Shutdown Capability; Low-power standby mode
