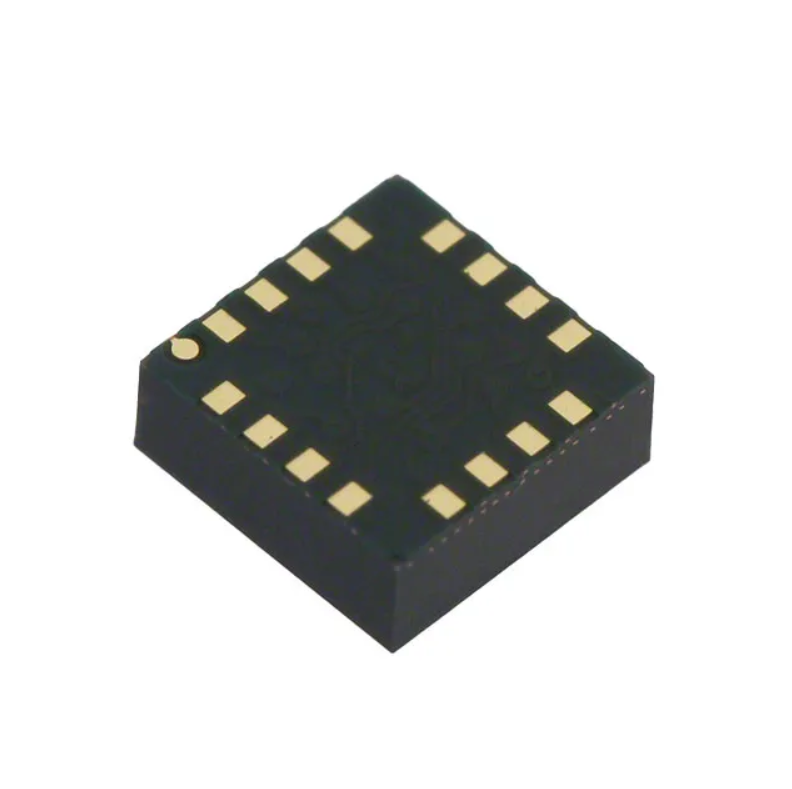

LIS3DHTR SMD IC Accelerometer LGA-16(3x3) LIS3DHTR

Product Overview:

An ultra-low-power, high-performance 3-axis "nano" linear accelerometer integrated circuit designed for motion detection applications, including power-saving, orientation, and vibration monitoring in handheld and industrial devices.

Core Specifications:

Manufacturer: STMicroelectronics

Package Type: LGA-16 (3x3x1 mm)

Function: 3-Axis Digital Motion Sensor (Accelerometer)

Measurement Range: Selectable ±2g, ±4g, ±8g, or ±16g

Control Interface: I2C/SPI Serial Interface

Features:

• Ultra-low-power consumption: Down to 2 μA in low-power mode

• Wide supply voltage range: 1.71 V to 3.6 V (independent IO supply supported)

• 16-bit data output

• Two independent programmable interrupt generators for free-fall and motion detection

• Integrated features: 6D/4D orientation detection, click/double-click recognition, embedded temperature sensor, and self-test capability

• Embedded 32-level FIFO for data buffering

Applications:

• Motion-activated user interfaces

• Intelligent power saving for handheld devices

• Pedometers and gaming input devices

• Display orientation control

• Vibration monitoring and compensation

• Impact recognition and logging
